Pendentives and Squinches

The quick visual difference

Stand below the transition and locate three levels. First find the walls, arches or piers that define the lower bay. Next find the corner zone between them. Finally trace the ring, drum or polygon from which the dome rises. A pendentive usually reads as a broad curved triangle that is continuous with the arch boundaries and opens upward. A squinch usually reads as a distinct construction placed across the corner, creating one or more short new sides above it. ^{[2] [15]}

That rule is a starting point, not a verdict. A plastered squinch can look smoothly triangular. A pendentive can be ribbed, painted or divided into panels. Muqarnas cells can obscure an earlier corner bridge, while a later ceiling can hide the transition altogether. The visible underside, or intrados, need not reveal the backing, voids, outer surface or support arrangement. Record what is seen and what is inferred separately. ^{[3] [16] [21]}

Begin with the bay and the ring

Original identification diagrams, not a measured building and not to scale. They follow the geometry from bay to ring, distinguish an idealised curved pendentive from four squinch-family constructions, and keep visible finish separate from concealed fabric and condition. No named monument, copied plan or section, survey, sacred image, inscription, heraldry, copied muqarnas pattern, proprietary repair, force magnitude or engineering result is reproduced.

The familiar textbook problem starts with a square room and a circular dome, but neither shape is compulsory. The lower bay may be rectangular, polygonal or distorted by construction and movement. The upper support line may be circular, oval, polygonal or broken by openings. A drum may stand between the transition and dome; in other cases the dome begins immediately above the ring. ^{[1] [48] [49]}

Draw the lower and upper outlines on the same centre. Mark every corner, arch, wall and pier below. Then mark each new bearing segment and the springing of the shell above. This simple exercise reveals whether the transition continues a curved surface, bridges a corner, combines several stages, or changes from one device to another. It also prevents a common mistake: calling any ornamented triangle below a dome a pendentive. ^{[4] [15]}

The drum is a wall, not another name for the transition. It may raise the dome, receive windows, alter daylight and add weight. Its openings and stiffness also affect the assembly below. Pendentives or squinches can support a drum, the dome itself, or an intermediate polygonal zone. The complete sequence should be stated rather than compressed into “a dome on pendentives.” ^{[17] [18] [52]}

How an ideal pendentive is formed

Imagine a domical surface spanning a square bay. Four large arches open through its sides. If the surface below a horizontal upper circle is removed wherever those arches pass, four curved triangular pieces remain at the corners. Those pieces are the idealised pendentives. Their lower tips approach the corner supports; their upper edges together form a continuous ring for a dome or drum. ^{[2] [3] [18]}

The geometry explains why the surface cannot be understood as a flat triangle. Its edges belong to arches and a ring, while its face curves in more than one direction. In masonry, bricks or stones must create that curvature through their courses, joints, wedges, ribs, backing and mortar. A drawing made by cutting a perfect sphere is an explanatory model, not proof that the builders laid out or constructed the surviving surface in precisely that way. ^{[15] [16]}

The term also meets neighbouring forms. A sail vault is a domical surface that continues across a bay rather than reading only as four corner pieces. A pendentive dome may continue the same curvature above the arches instead of placing a separately legible dome on an upper ring. A spandrel is the area beside or above an arch and is not automatically a pendentive. Because historical vocabularies and modern surveys differ, the safest description gives the observed boundaries as well as the preferred term. ^{[1] [47]}

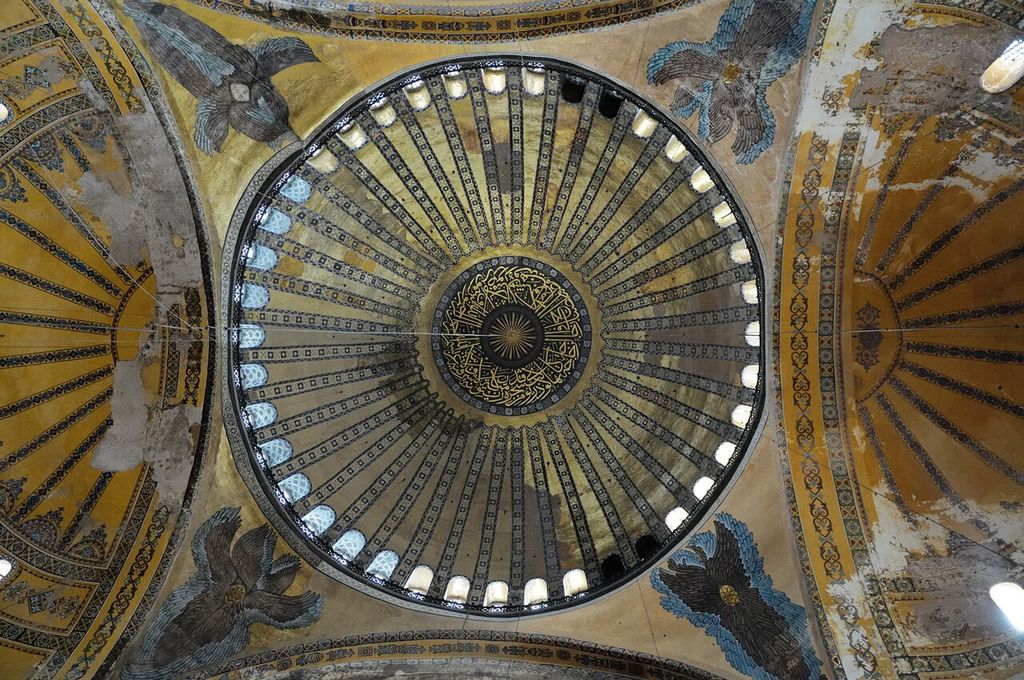

At Hagia Sophia in Istanbul, the central dome belongs to an extensive system of four great arches, massive piers, pendentives, half-domes and subsidiary spaces. The interior makes the curved transition visually dramatic, yet the supports are not slender points and the monument is not an untouched geometric demonstration. The first central dome fell; its replacement differed, later portions also failed, and the fabric has undergone centuries of repair and changing use. ^{[17] [18] [19] [20]}

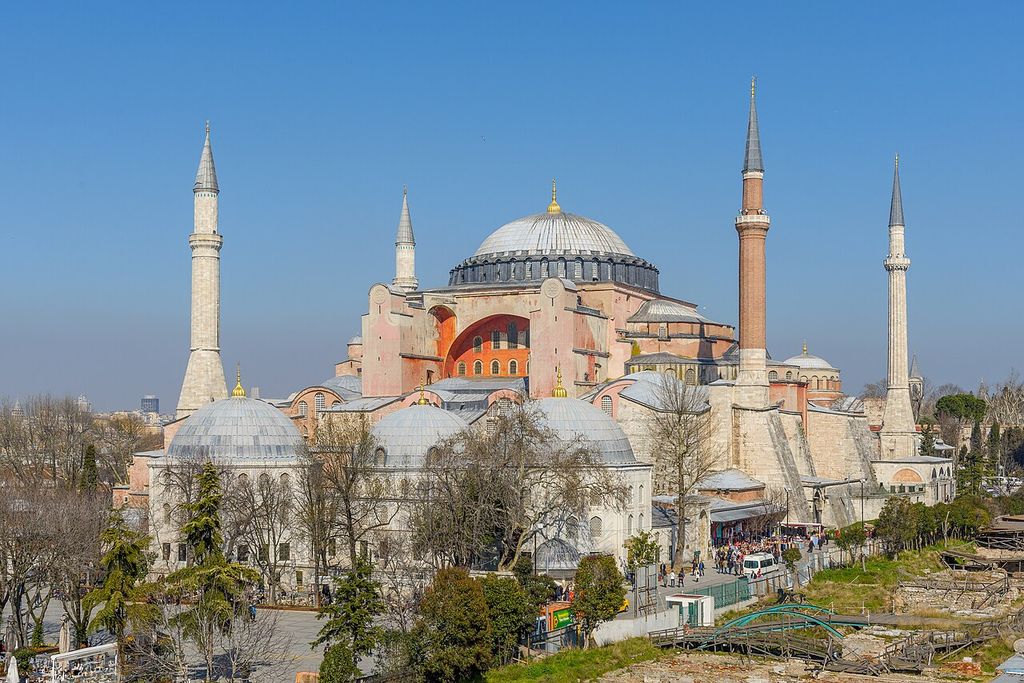

Hagia Sophia in Istanbul, photographed by Arild Vågen in March 2013, with the central dome, subsidiary half-domes, buttressed masonry and later minarets visible. Arild Vågen, Hagia Sophia, March 2013; CC BY-SA 3.0. JPEG prepared; no crop or retouch.

The squinch is a family, not one shape

A squinch creates support across or within a corner. The simplest diagram shows a small arch laid diagonally between two walls. Its face establishes a new side, so four corner arches change a square into an octagon. The upper masonry can then pass through further polygonal stages or receive a dome whose base approximates a circle. ^{[1] [21] [25]}

Other squinches work differently. Courses may corbel inward, each projecting beyond the one below. A recessed niche can end in a conch or half-dome. Several arches may be nested or stacked. Small curved, faceted or prismatic cells can multiply until the corner becomes a complex transitional field. Materials and joints decide what the construction actually is; “squinch” does not promise a single method. ^{[14] [23] [31] [32]}

The Sassanid archaeological landscape in Fars preserves important early domed rooms with squinches over square spaces, including chahar-taq forms associated with Zoroastrian architectural settings. The World Heritage record also notes later continuity, but survival does not equal a single moment of invention. At the Palace of Ardashir, rubble masonry, plaster, altered arches, reconstruction and modern documentation all condition what can be claimed from the present fabric. ^{[25] [26] [27]}

The late ninth- or early tenth-century Samanid Mausoleum at Bukhara offers a very different brick case. Its corner zones use layered arches within a densely articulated interior, where bond and pattern participate in both construction and appearance. The building's precise patronal attribution and the identity of the burials remain debated, so the squinches should not be made evidence for a more certain biography than the sources allow. ^{[23] [24]}

Muqarnas, conches and other neighbouring terms

Muqarnas consists of arranged cells or small surface units that can articulate three-dimensional transitions. It can grow from a squinch zone, fill a pendentive-like field, form a cornice, cover a niche or portal, or make a complete dome. It is therefore wrong to use muqarnas as a decorative synonym for every squinch. The word already ends in s; sources variously treat it as a zero plural or use “muqarnas cells” for constituent units. ^[21]

A fourteenth-century stonepaste tile at the Metropolitan Museum was shaped as a muqarnas element associated with a squinch. Its precise origin is unknown, although it has been compared with material at Shah-i Zinda. That object is excellent evidence for a glazed unit and its museum history, but it cannot reconstruct the entire transition from which it came. ^[22]

A conch is a semi-domical surface closing a niche. It may form the visible hood of one squinch variant, yet not every conch sits in a corner or supports a dome. “Trompe” appears in French and translated scholarship for related corner constructions. “Turkish triangle,” “folded triangle” and other regional terms describe particular arrangements and should be used only when a source and the actual fabric support them. Controlled vocabulary is useful precisely because it exposes these boundaries rather than erasing them. ^{[1] [2]}

Materials, courses and concealed construction

Brick can turn through a corner with radial, horizontal, inclined, stepped or patterned courses. Stone construction may show cut voussoirs at a squinch arch, slabs in corbelled tiers, dressed facing over rubble, or ribs enclosing lighter infill. Plaster can unify unlike materials. Tile, mosaic or painting may attach to a preparatory bed that crosses joints in the support masonry. The resulting surface can be more regular than the structure behind it. ^{[10] [11] [13] [14]}

A fabric survey should note unit size, bedding direction, joint thickness, mortar, toothed connections, cracks, voids, bonding into adjacent walls and changes of finish. It should ask whether the transition was built with the bay, inserted later, rebuilt after movement, or merely refaced. Documentary drawings and photographs are valuable, but they may simplify inaccessible backing or record a condition that no longer exists. ^{[4] [5]}

The Great Mosque of Isfahan demonstrates why chronology matters. Its domed chambers and brick surfaces belong to distinct patrons and building phases within a mosque transformed over centuries. The visible underside can be studied for geometry and craft, but the whole complex must not be collapsed into a timeless “Islamic squinch.” ^{[28] [29]}

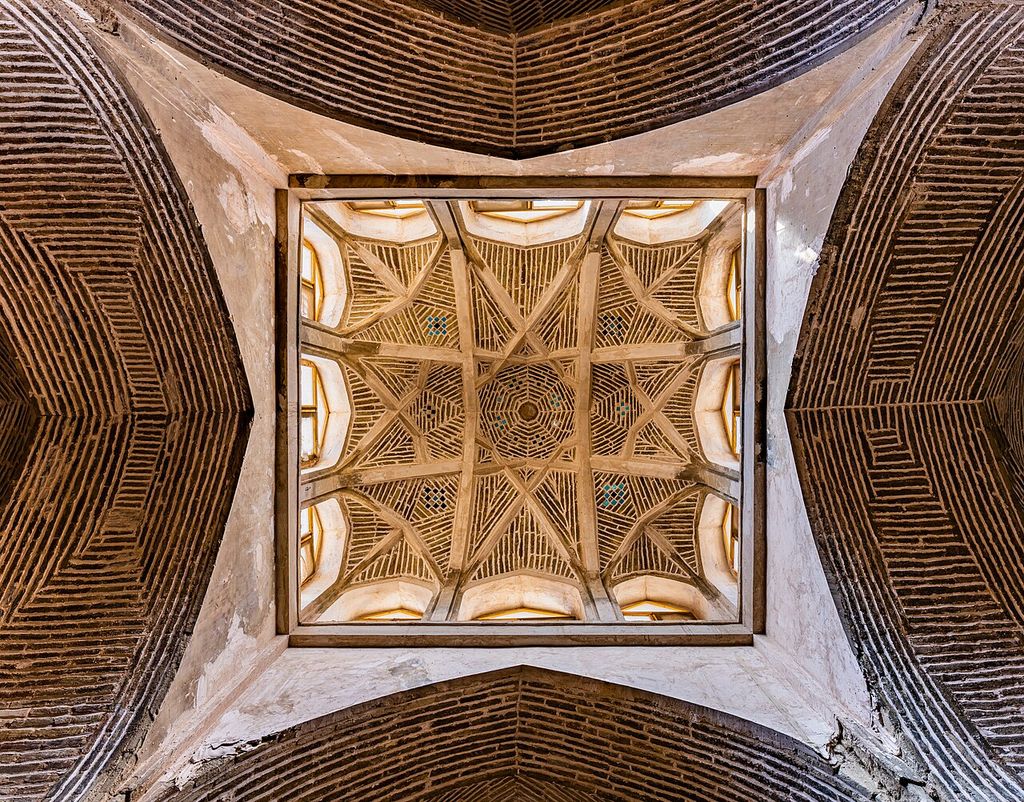

Intersecting ribs and patterned brick infill in a dome at the Jameh Mosque of Isfahan, photographed by Amir Pashaei in 2019; the Commons source identifies the image as HDR. Amir Pashaei, Ribbed vault of Jameh Mosque of Isfahan; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

At the Masjid-i Shah described by Archnet, large pendentives help establish an octagonal level, after which squinches further reduce the transition beneath an interior dome. This named case shows that the two labels are not mutually exclusive. It also separates the interior surface, exterior dome, hidden buttressing and tiled finish—features that a photograph from the prayer hall cannot fully resolve. ^[33]

Many histories, not an invention contest

Pendentives and squinches appear in accounts of Roman, Byzantine, Sassanid, Armenian, Georgian, Islamic, Ottoman, South Asian and European architecture. These labels cover different centuries, regions, materials and institutions. Modern terminology is often applied retrospectively, and the oldest surviving example is not automatically the first built. Similar geometries can be transmitted, adapted or independently developed; form alone cannot prove the route. ^{[15] [25] [41] [43]}

The sixth-century rebuilding of Hagia Sophia under Emperor Justinian, with Anthemius of Tralles and Isidore of Miletus associated with its design, made pendentive construction monumental. Yet other Justinianic buildings used domed modules differently, and repeated earthquake damage changed the evidence. The history belongs to patrons, designers, masons, carpenters, mosaicists, later repairers and changing religious communities rather than to a single triumphant invention. ^{[17] [18] [19]}

In Fars, surviving Sassanid sites relate domed halls, corner transitions, kingship and Zoroastrian contexts. In Bukhara and Samarra, domed funerary or pavilion forms carry different functions and historical uncertainties. The Qubba al-Sulaybiyya, for example, has been interpreted as a mausoleum, garden pavilion and monument with other associations; its squinch-supported octagonal transition is more secure than a single account of its original purpose. ^{[25] [31]}

Across Iran and Central Asia, squinches, pendentives, interlaced arches and cellular zones developed in varied building programmes. The Masjid-i Diggaron uses multiple domes and squinch vaults, while the Great Mosque of Isfahan accumulated spatial and material solutions rather than following one diagram. A history attentive to brick, plaster, tile, patronage and worship is more accurate than a sequence of national style labels. ^{[28] [30] [32]}

The Qutb complex in Delhi records both change and continuity as Sultanate patrons worked with established local crafts. At the Alai Darwaza, true arches and corner squinches participate in a domed gateway whose ornament includes locally legible forms. It should not be described as either wholly imported technique or unchanged indigenous practice. ^{[34] [35]}

Armenian and Georgian central-domed churches require their own architectural and ecclesiastical contexts. The World Heritage records for Echmiatsin, Haghpat and Sanahin, and Mtskheta establish major regional traditions, sacred continuity and conservation responsibilities. They do not make every curved corner surface evidence of borrowing from Constantinople. ^{[41] [42] [43]}

New Julfa's Armenian cathedral in Isfahan adds another layer: brick and mud-brick construction, double-shell descriptions, painted pendentives and a community history shaped within Safavid Iran. Because its World Heritage entry remains tentative-list documentation, both its advocacy and its detailed claims must be identified as such. ^[44]

Ottoman architecture likewise requires more than a sentence about Byzantine influence. At Süleymaniye and Rüstem Pasha Mosque, domes and transition zones belong to different spatial organisations, patrons, urban settings, worship practices and tile programmes. Sinan worked within an imperial architectural administration and extensive craft networks. Şehzade's mosque and mausolea further show squinch and pendentive surfaces carrying polychrome programmes inside a funerary and charitable complex. ^{[37] [38] [39] [40]}

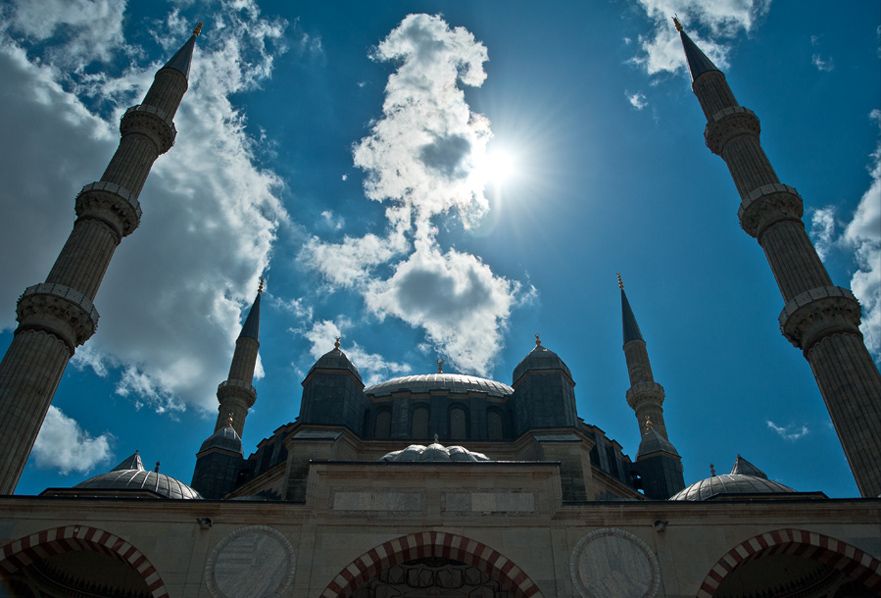

Selimiye Mosque in Edirne, photographed by Ahmet Baris ISITAN in September 2011, with its central dome and four minarets seen from the courtyard. Ahmet Baris ISITAN, Edirne: Selimiye’s dome and four minarets; CC BY-SA 3.0. JPEG prepared; no crop or retouch.

In fifteenth-century Florence, the Old Sacristy uses a pendentive dome within a carefully organised Christian chapel. Its geometry, sculpture, Medici patronage and liturgical setting should be read together. Florence Cathedral's far larger octagonal dome is a useful warning at the route boundary: an octagonal shell over an octagonal drum presents a different transition problem and should not be forced into this paired taxonomy. ^{[45] [46]}

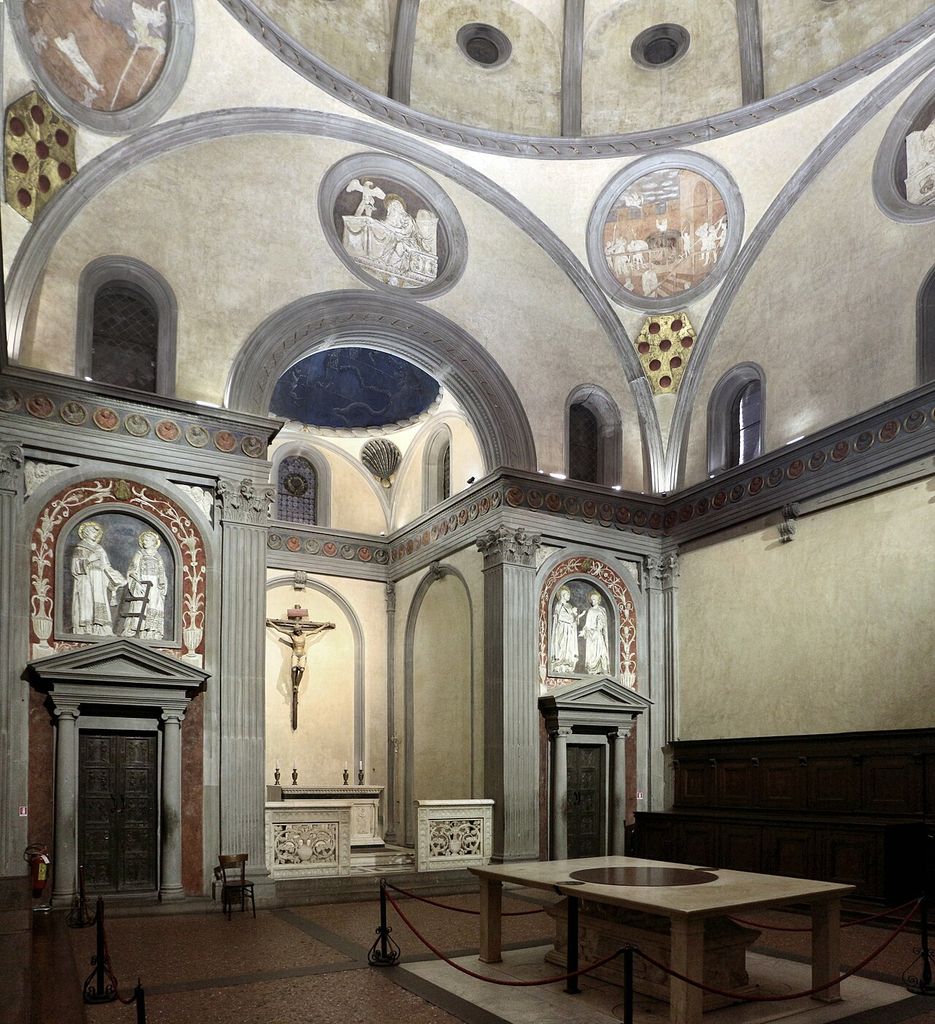

Brunelleschi's Old Sacristy at San Lorenzo in Florence, photographed by Sailko in July 2016, with its dome, pendentives, roundels and chapel fittings retained. Sailko, Old Sacristy, San Lorenzo, Florence; CC BY 3.0. JPEG prepared; no crop or retouch.

Sacred surfaces and cultural ownership

The corner between a principal arch and dome is a prominent field. Christian churches may place evangelists, angels or other sacred images there. Islamic buildings may use Qur'anic or dedicatory inscriptions, geometry, vegetal pattern, tile or carved cells. The surface can link the dome's visual centre to the community gathered below, but its meaning is never supplied by “pendentive” or “squinch” alone. ^{[17] [36] [44]}

At the Karatay Madrasa in Konya, inscribed, tiled, fan-shaped pendentive fields belong to a thirteenth-century institution supported through waqf. Their calligraphy, teaching space, patron and material technique provide the interpretive context. A structural label that omits those relationships would explain only part of the architecture. ^[36]

At New Julfa, painted cherub imagery on pendentives belongs to Armenian Christian practice and later artistic campaigns. At Ottoman mosques, İznik tile or painted decoration occupies different substrates and relates to prayer, patronage and workshops. Description must name the building and phase, distinguish surviving from restored material, and respect continuing custodianship. ^{[37] [39] [40] [44]}

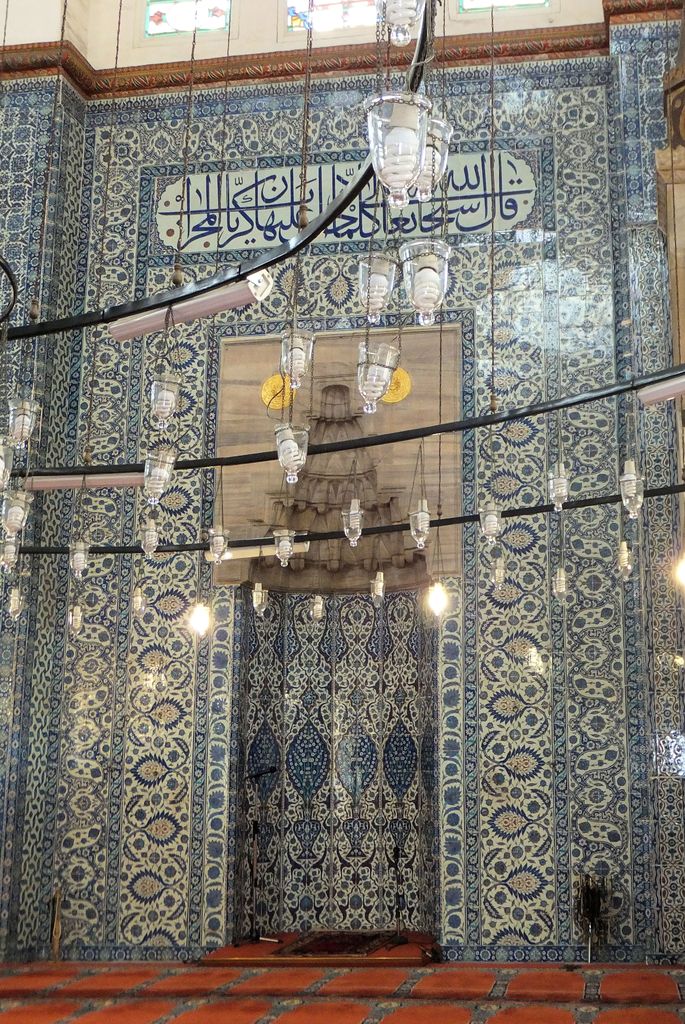

The tiled mihrab wall of Rüstem Pasha Mosque in Istanbul, photographed by R Prazeres in December 2017, with blue-and-white İznik tiles, inscription panels and hanging lamps retained. R Prazeres, Rüstem Pasha Mosque: mihrab and İznik tile revetment; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

How to read a transition in the building

Begin from a safe public position. Sketch the lower bay and count its supports. Mark which sides are open arches and which are solid walls. Trace the upper ring or drum and note whether it is circular, polygonal or irregular. Then draw each corner transition without assuming that all four match. ^{[4] [8]}

Next record fabric. Identify brick, stone, rubble, concrete, timber, metal, plaster, tile, mosaic or paint only where visible. Map courses, joints, ribs, ledges, openings and interfaces. Separate the finish from likely backing. Look for changes in unit, mortar, surface and alignment that may indicate a construction break or repair. ^{[10] [11] [13] [14]}

Finally record condition and evidence. Mark cracks, bulges, detached areas, stains, salt deposits, corroding metal and previous fills. Give every observation a date and viewpoint. Compare it with measured drawings, archival photographs, maintenance files and monitored points. State “not visible” or “uncertain” when access or finish prevents a conclusion. ^{[5] [12] [51]}

Do not climb, tap, pull or enter high-level voids without permission, training and suitable equipment. Accessibility is not achieved by sending every visitor into a roof space. Clear diagrams, models, tactile interpretation, captioned media and well-chosen viewpoints can explain the geometry while protecting worship, fabric and people. ^{[8] [9]}

Conservation: treat causes only after investigation

Water may enter through a dome covering, drum window, parapet, roof junction or failed drainage and emerge far below at a pendentive. Hard cement pointing or impermeable coatings can redirect moisture and accelerate loss in softer historic brick or mortar. Staining is therefore a clue to map, not a warrant for sealing the visible patch. ^{[10] [11] [14]}

Detached plaster, mosaic, tile or paint can present an immediate falling-material risk even if the main masonry remains stable. Conversely, stable finish does not prove that concealed backing is sound. Conservators may need close inspection, sounding under controlled conditions, environmental data, microscopy or other tests; structural engineers may need survey, monitoring and analysis. Their findings should be integrated rather than reduced to a single diagnosis. ^{[12] [15] [50] [51]}

Repairs must respect significance and the actual material system. New mortar should be compatible with historic masonry; inserted metal needs corrosion and load-path assessment; grouting can change moisture and stiffness; reconstruction can erase evidence if not documented. The preferred intervention is not automatically the newest or strongest material. It is the least harmful effective response established for the named building, with records that future custodians can understand. ^{[5] [6] [7] [11]}

Reading the diagram

The diagram begins with two levels: the square bay, arches or walls and piers below, then the circular or polygonal ring above. The second panel builds an ideal pendentive from curved corner surfaces between arches, using a dashed spherical guide that is explicitly explanatory rather than surveyed. The third panel compares four invented squinch families—diagonal arch, corbelled bridge, niche or conch, and cellular transition—without borrowing a monument's pattern. ^{[1] [15] [21]}

The final panel asks what evidence is visible: finish, backing, coherent joints, later insertion, cracking and moisture. Hatching, dots, labels and symbols repeat colour. No arrow carries a force magnitude, and no panel is measured or to scale. The visual teaches a recording sequence, not a structural verdict. ^{[4] [48]}

Pendentives and Squinches: Five Evidence Tests

Record the lower bay, corner construction, upper bearing line, fabric and phase separately before naming the transition.
