Cathedral Floor Plans

Cathedral does not describe a plan shape

A cathedral is defined by institutional role. In the Church of England glossary it is the principal church of a diocese, staffed by a dean or provost and chapter, where the diocesan bishop has a cathedra, or seat. A footprint cannot prove that status. A vast cruciform Gothic church might instead be an abbey or parish church, while a cathedral may occupy a smaller or much-altered building. ^[4]

This matters when comparing drawings. The word “cathedral” explains governance and use, not a universal arrangement of nave, transepts and apse. Period, region, denomination, site, patronage and successive building campaigns account for the differences that plans record.

Read the key before the cathedral

In a conventional architectural plan, a horizontal plane passes through the building. Fabric cut by that plane is usually drawn more strongly than surfaces or edges seen beyond it. Piers, columns, wall openings, doors and stairs indicate how bays connect. Lighter, broken or patterned lines may mark something above, below, removed, conjectured or belonging to another phase.

None of those line meanings is universal. A broken outline could be a vault overhead on one sheet and an excavated foundation on another. A coloured wall might be thirteenth-century fabric, modern repair or simply a visitor zone. The legend decides.

Scale also needs care. A ratio or scale bar permits measurement only when the source and reproduction preserve it. A screenshot enlarged to fit a page may retain the printed words “1:200” without remaining 1:200 on screen. North must likewise come from a documented arrow or site record. “Liturgical east” often means the altarward direction and is not proof of geographic east.

Locate relationships, not just names

Many Western cathedral plans can be approached as a connected sequence. A principal or west entrance opens into the nave. One or more aisles flank it, their supports appearing as rows of columns or piers. A transept may cross this longitudinal body, producing a crossing. Beyond or around that junction lie spaces labelled choir, quire, chancel, presbytery or sanctuary according to the building and source. An apse may terminate the route, and an ambulatory may continue around it to chapels. ^[5]

Those labels are orientation points, not a complete glossary. The dedicated church-parts page explains their definitions and overlap. Here, the useful questions are relational: Does the aisle continue past the transept? Is the choir east or west of the crossing? Can someone reach a chapel without entering the choir enclosure? Does a stair descend to a crypt or rise to another level? Does the cloister connect to the church, or does a baptistery stand apart?

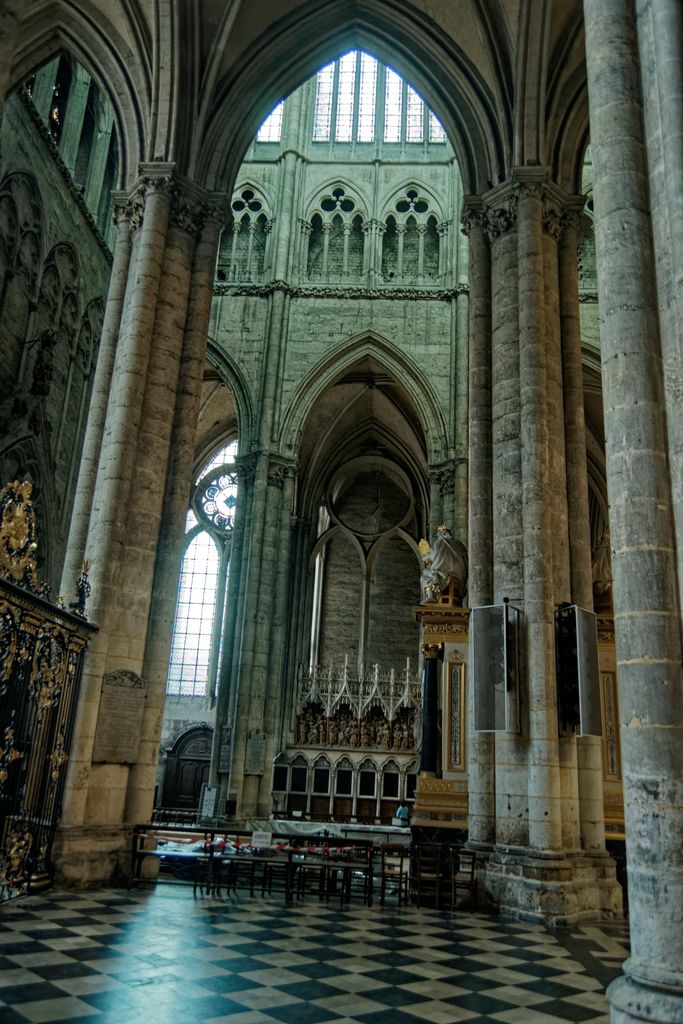

Amiens Cathedral, looking from beside the choir toward the south transept, May 2010. Txllxt TxllxT, Amiens: beside the choir toward the south transept; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

A floor plan can answer those questions when its level and date are known. It does not show the full height of a nave, the window sequence of a clerestory or the profile of a vault. Pier positions may suggest a bay rhythm, but they do not establish concealed foundations, present structural condition or an engineering load path.

Movement and present access

Architecture is occupied over time. In medieval churches, aisles and ambulatories could enable movement towards shrines and chapels without interrupting services in the central liturgical zones. Screens, gates, stalls, tombs and altars then directed who could see or enter particular areas. ^[5]

Present visitor plans map a different layer. Durham Cathedral's official map labels the nave, quire, shrine of St Cuthbert, Chapel of the Nine Altars, Galilee Chapel, cloister and chapter house, as well as entrances, ramps, lifts and facilities. These labels make it useful for navigating the building now. They do not turn its simplified geometry into a medieval measured survey. ^[10]

The cathedral's account of the quire supplies evidence that the map alone cannot: the space lies beyond the crossing and contains the choir stalls, organ, bishop's cathedra and high altar. It also records the screened use of the area by the medieval monastic community and subsequent changes. Walls, furnishings and patterns of access can therefore belong to different dates. ^[11]

Construction history needs a phase plan

Cathedrals commonly incorporate long sequences of work. Foundations can survive beneath rebuilt walls; a choir may precede a nave; perimeter chapels may fill spaces between buttresses; towers can replace earlier terminations; a cloister range may be altered independently. A single undifferentiated outline disguises those relationships.

Historic England's recording guidance combines visual survey, photography, documentary work and interpretation of fabric. It separates phasing analysis from precise metric survey while treating them as complementary. A reliable account may need both: measurement supplies spatial control, and investigation explains joints, blocked openings, material changes and documentary dates. ^[1]

A phase plan should distinguish observation from interpretation. “Wall A abuts Wall B” is physical evidence; “Wall A belongs to the campaign of 1250” requires a dated argument. If excavation reveals a former apse below the present choir, the lower feature should be drawn on its own level or clearly patterned—not merged with the standing ground floor as though both were visible together.

Amiens: coherent design with later additions

The Mapping Gothic France project provides an academic record for Amiens Cathedral with a floor plan, historical plans, panoramas and bibliography. Its value lies partly in connecting representations: the plan can be tested against the building's volumes and scholarly record rather than viewed in isolation. ^[6]

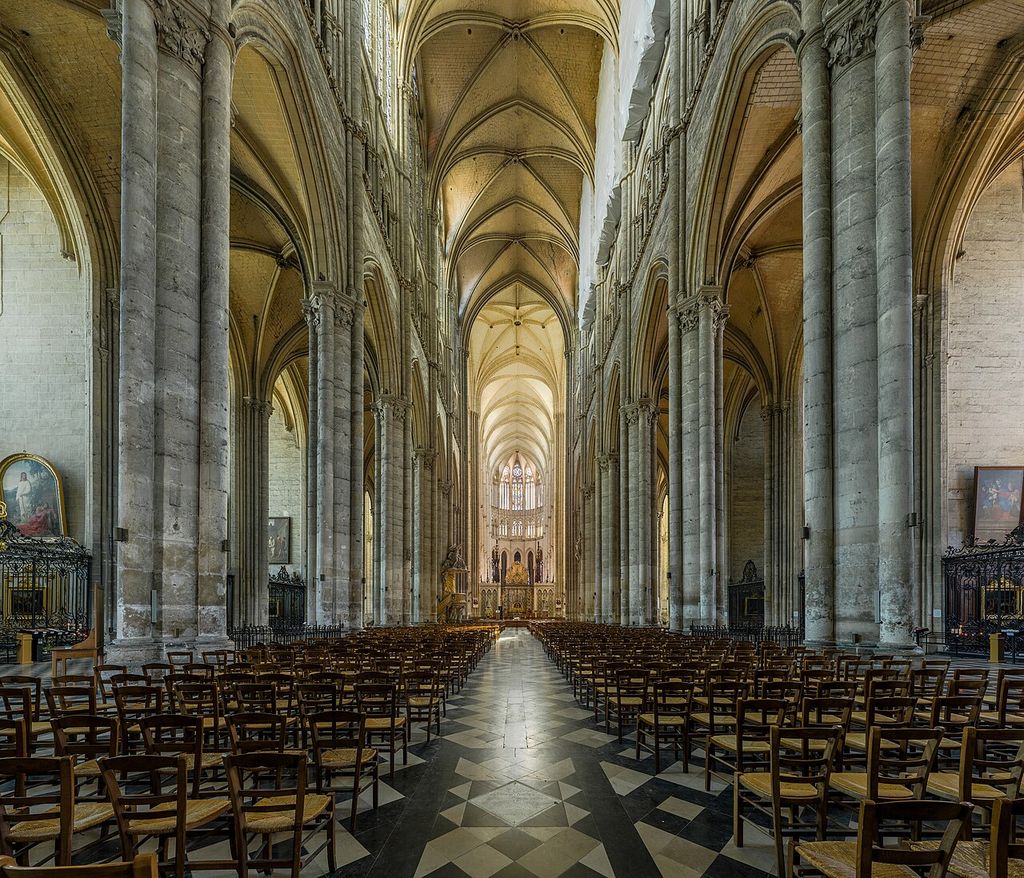

Smarthistory describes a west entrance leading into a tall central nave flanked by narrower aisles. A transept intersects the longitudinal body and defines the choir, producing a Latin-cross relationship in plan. Its account of arcade, triforium and clerestory belongs to the elevation, reminding us that the familiar three-storey interior cannot be read from footprint alone. ^[7]

UNESCO describes the nave and choir as balanced on either side of the transept and dates the principal campaign from 1220 to 1288. Yet it also records chapels inserted between the nave-aisle buttresses between 1292 and 1375. Amiens can therefore be both unusually coherent in conception and historically layered. An interpretive plan should hatch those later perimeter additions instead of implying that every present chapel belongs to 1220. ^[8]

The lesson is not that Amiens supplies the ideal cathedral. It shows how an axial route, transept hinge and surrounding chapels can be read while retaining dates for fabric that modifies the principal design.

Toledo: breadth and a choir west of the crossing

Toledo Cathedral overturns a common labelling shortcut. Its Gothic plan has a broad body with double aisles, short transept projections, an ambulatory and a continuous ring of radiating chapels. Smarthistory connects the breadth and the cloister's position to the footprint of the former Friday mosque on the site, while also documenting more than a century of Gothic construction and later changes. That relationship should be presented as a historical interpretation, not a rule for every Iberian cathedral. ^[9]

Most importantly for plan reading, Toledo's enclosed choir stands in the nave west of the crossing. The principal chapel, or capilla mayor, and high altar occupy the apse region. A reader who automatically writes “choir” on the arm beyond the transept would therefore misread the building.

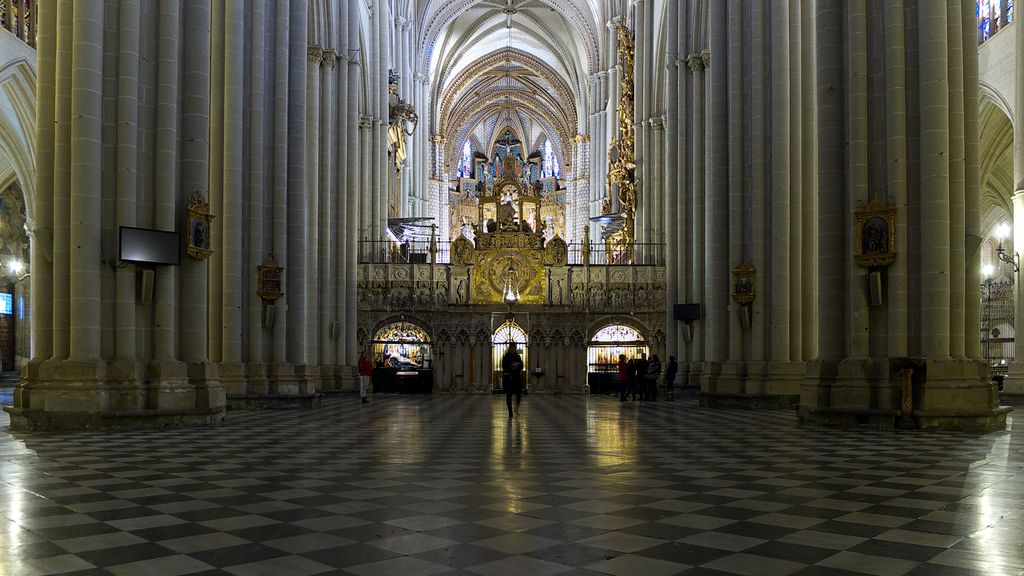

Toledo Cathedral, looking through the nave toward the back of the choir enclosure, December 2012. José Luis Filpo Cabana, Toledo Cathedral: nave toward the back of the choir enclosure; CC BY 3.0. JPEG prepared; no crop or retouch.

The useful comparison with Amiens is precise. Both plans have Gothic aisles, transepts and eastern chapels, but the position and enclosure of the choir alter movement and sightlines. Regional difference is not merely a different outer silhouette; it can reside inside an apparently familiar footprint. ^[9]

Canterbury: one complex, several levels

Canterbury Cathedral's accessibility plan is organised around routes. It maps the nave, south-west transept, Martyrdom, quire, Trinity Chapel, crypt, Great Cloister and chapter house, then identifies barriers, lifts, ramps, stairs and exterior alternatives. Because it was made for visitors with disabilities, those details are central rather than incidental. ^[12]

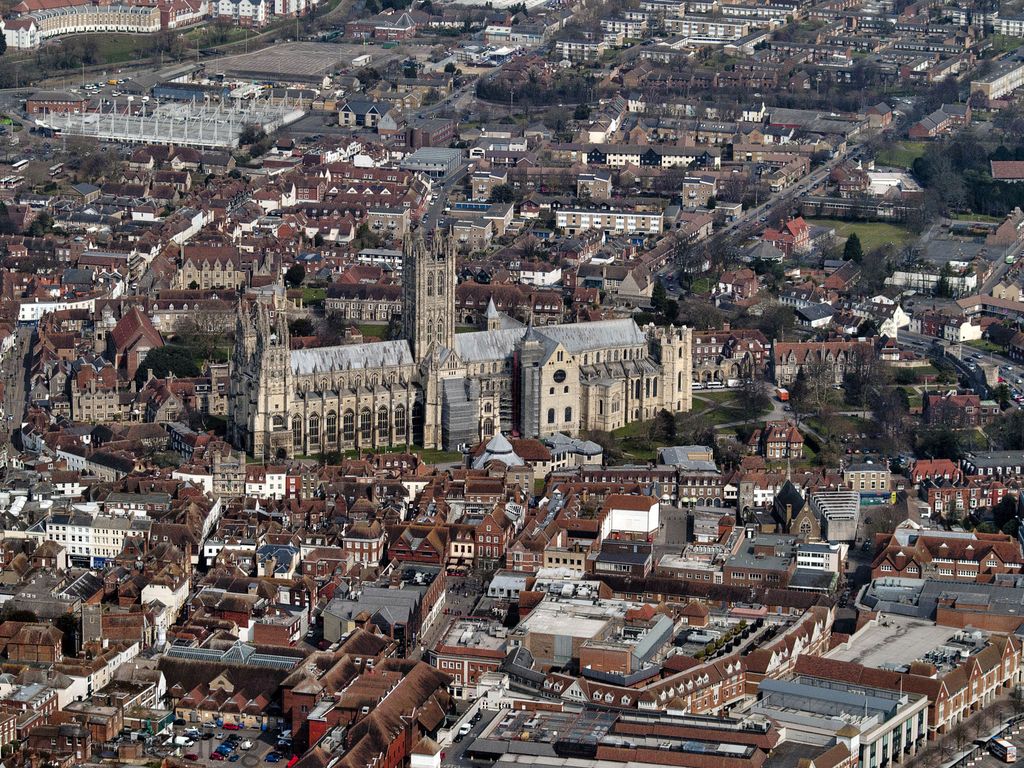

Canterbury Cathedral and surrounding city from the air, April 2013. John Fielding, Canterbury Cathedral aerial view; CC BY 2.0. JPEG prepared; no crop or retouch. Original Flickr photograph.

Its limitations are equally informative. The plan cannot place all named destinations on one physical plane without qualification. The cathedral's education resource states that the crypt lies beneath the quire and Trinity Chapel. It records the rebuilding of the quire after the fire of 1174 and identifies Trinity Chapel's purpose as housing Thomas Becket's shrine. It also explains how the Great Cloister linked the former monastery and its chapter house. ^[13]

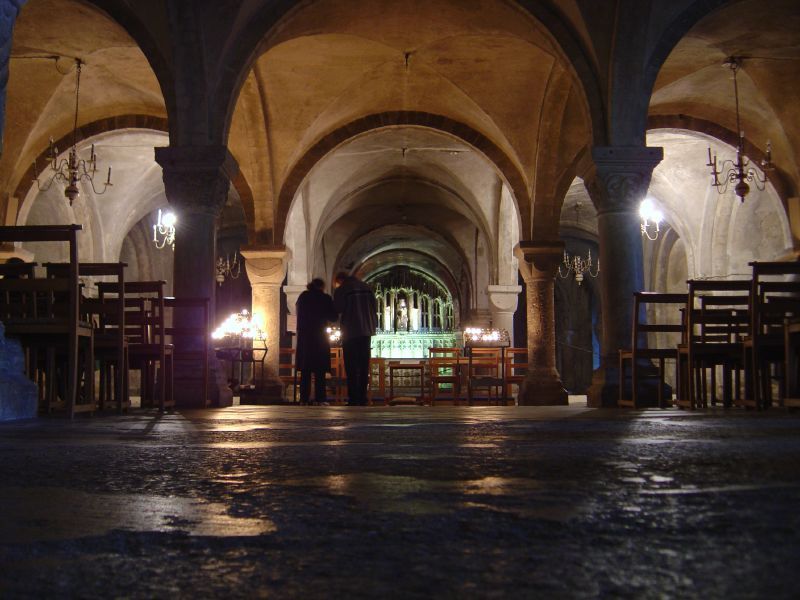

The crypt beneath Canterbury Cathedral, October 2003. Saxon Moseley, Canterbury Cathedral crypt; CC BY 2.0. JPEG prepared; no crop or retouch. Original Flickr photograph.

Canterbury therefore calls for at least two diagrams: a ground or visitor relationship and a separate below-level crypt strip. The 1174 rebuilding and later access equipment need distinct phase or status symbols. Flattening them into a clean outline would make the drawing easier to glance at but harder to trust.

Pisa: when the site plan matters

At Pisa, the cathedral is only one of four major precinct buildings. UNESCO identifies the cathedral, baptistery, campanile and cemetery as distinct monuments developed in close proximity from the eleventh to the fourteenth century. Their spatial grouping is an essential part of the Piazza del Duomo. ^[14]

The baptistery, cathedral and campanile at Pisa, October 2024. kallerna, Pisa: baptistery, cathedral and campanile across the precinct; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

Smarthistory narrows the reading inside the cathedral. The main body is basilican and double-aisled. Each transept arm repeats an aisled arrangement ending in a smaller apse, creating a strongly four-armed relationship, while a dome rises over the crossing. The freestanding baptistery and campanile are not rooms omitted from the church plan; they are separate buildings. ^[15]

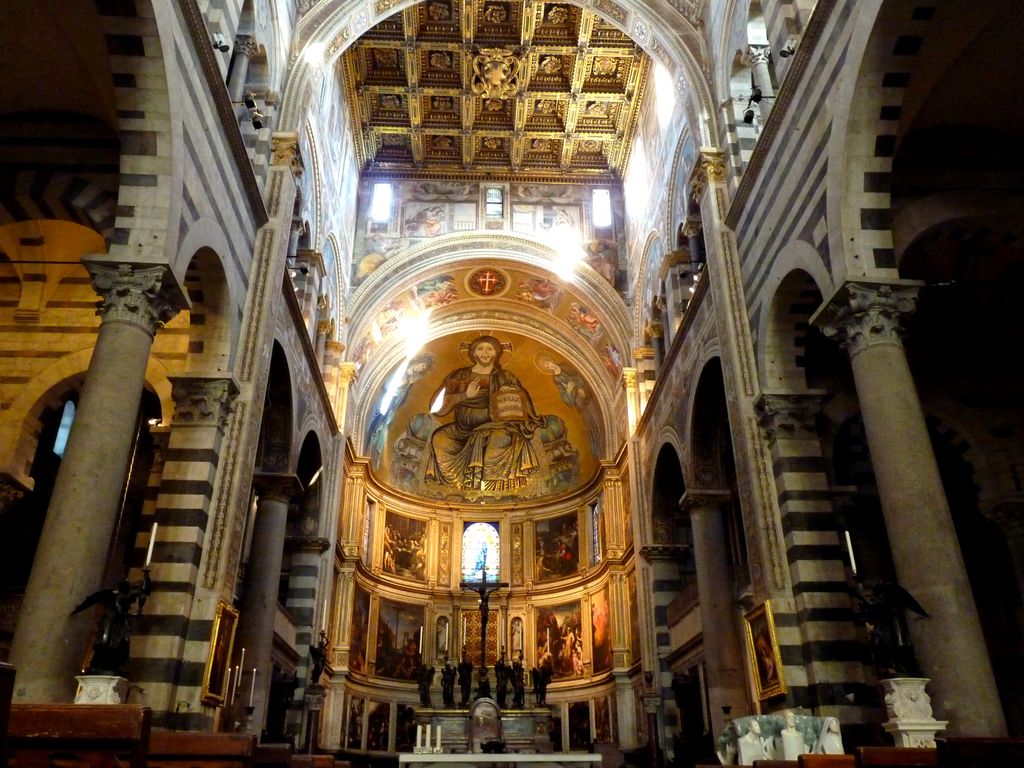

Inside Pisa Cathedral, looking toward the main apse, October 2010. Dudva, Pisa Cathedral: interior toward the main apse; CC BY-SA 3.0. JPEG prepared; no crop or retouch.

A site plan and a floor plan answer different questions here. The first locates baptism, bells, worship and burial across the precinct. The second explains the cathedral's nave, aisles, apses and crossing. Combining the two scales without a key would conceal the very arrangement that makes Pisa useful for comparison.

Reading the diagram

Original relationship schematics, not measured plans and not to scale. The convention fragment is invented; the four named cards isolate source-backed relationships without reproducing any source outline, coordinates or route styling.

The diagram below is a set of original relationship schematics, not copied or measured cathedral plans. Its first panel explains conventions on an invented fragment: heavier cut walls, supports, a door swing, stairs and keyed patterns for other levels, phases and conjecture. The north arrow belongs only to that invented drawing, and the scale field reads “not measured.”

Four comparison cards then isolate the evidence above. Amiens links west entry, nave and aisles, transept, choir and ambulatory while hatching later perimeter chapels. Toledo places an enclosed choir within the broad nave west of the crossing. Canterbury separates its crypt-below strip from the ground-level route and attaches cloister and chapter house. Pisa uses precinct masses for cathedral, baptistery, campanile and cemetery, with a small cathedral inset.

Arrows describe movement or reading sequence, never structural force. Matching colours do not imply identical date or function, because every state is repeated through labels, patterns or line styles. Each card names its question and its status as an interpretive relationship rather than a measured plan.

Cathedral Plans: Five Evidence Tests

Read the drawing type and stated level before comparing spatial relationships.
