Ribbed Vault

The basic parts of a ribbed vault

A vault is a curved construction spanning a space. A bay is the portion considered between principal supports or transverse divisions. Within a ribbed bay, the webs or cells are the curved fields enclosed by the ribs. The word `severy` is also used for one such compartment, especially in studies of medieval vaulting, although usage differs among authors. ^{[1] [3] [22]}

The ribs can be distinguished by where they run:

• A transverse arch crosses the main axis and commonly separates one bay from the next.
• A diagonal rib runs across the bay between opposing corners or springing groups.
• A wall rib, often called a formeret in French-derived terminology, follows the edge where the vault meets an enclosing wall.
• A ridge rib follows a line near the crown of the vault, longitudinally or transversely.
• A tierceron springs from a principal support but is neither the main transverse arch nor a diagonal connecting opposite corners.
• A lierne is a shorter link between other ribs and does not begin at a principal springing. ^{[1] [3] [6] [23] [24]}

Several ribs may leave the support through compact lower courses called the springer or tas-de-charge. Higher up, ribs may meet beneath or within a boss, a carved or plain stone that articulates a junction. The haunch is the region above the springing and below the crown. It can contain web masonry, backing and fill that are invisible from the floor but significant to both construction and later behaviour. ^{[19] [22]}

These labels should follow observed connections, not visual resemblance alone. A plaster moulding applied beneath an older shell can look like a rib. Painted joints can simulate vault cells. Conversely, a constructional rib may be flush with the surrounding surface or concealed by finish. Inspection of profiles, joints, bonding and documentary evidence is needed before deciding what the visible lines represent. ^{[2] [16] [45]}

Begin in reflected plan

Original architectural-reading diagrams, not a measured building and not to scale. They connect plan, section and supports; describe patterns by rib endpoints; separate temporary construction stages from completed action; and distinguish visible fabric from applied work, replacement and condition evidence. No named building, copied plan, survey, tracing floor, sacred image, boss design, proprietary repair or engineering result is reproduced.

Stand beneath a bay and imagine looking upward while projecting the ceiling pattern onto a flat plan. Mark the supports first, then the transverse boundaries and diagonals. A simple square bay with two crossing diagonal ribs may appear regular, but real plans can be oblong, trapezoidal, skewed by existing walls or adjusted around towers and chapels. The underside view compresses height and can hide which line meets which support. ^{[8] [19]}

A section supplies the missing vertical information. It shows the height of springings, the shape of transverse and diagonal arches, the rise of webs and the relation between crown, roof and supports. Pointed rib profiles can help arches of unequal spans arrive at related heights, but masons had several geometric options, and a pointed outline does not guarantee one setting-out system. ^{[8] [9]}

For field identification, record the following in sequence: the limits of the bay; every support or corbel; the start and end of each visible rib; the web fields; the crown or ridge lines; interruptions and changes in profile; masonry and mortar; and the relation to adjacent bays. Add photographs from more than one angle and, where access and permission allow, compare them with measured plans and sections. Historic England's recording guidance treats drawing, photography, written description and documentary research as complementary evidence rather than interchangeable substitutes. ^[2]

Four-part and six-part vaults

A basic quadripartite, or four-part, ribbed vault commonly has two diagonals crossing a bay and four web cells around their intersection. `Four-part` describes the principal division; it does not promise that all cells have the same curvature or that the plan is a perfect square. Wall ribs, ridge ribs, mouldings and repairs may add lines without changing that underlying relation. ^{[19] [23]}

A sexpartite, or six-part, vault introduces an intermediate transverse relation that divides the bay into six principal cells. In major French churches, this can correspond to alternating pier conditions along the vessel. A recent study of Notre-Dame de Paris, for example, models the sexpartite high vault together with walls, tas-de-charge, flyers and massive outer buttresses; the study does not reduce the system to the six cells seen overhead. ^[22]

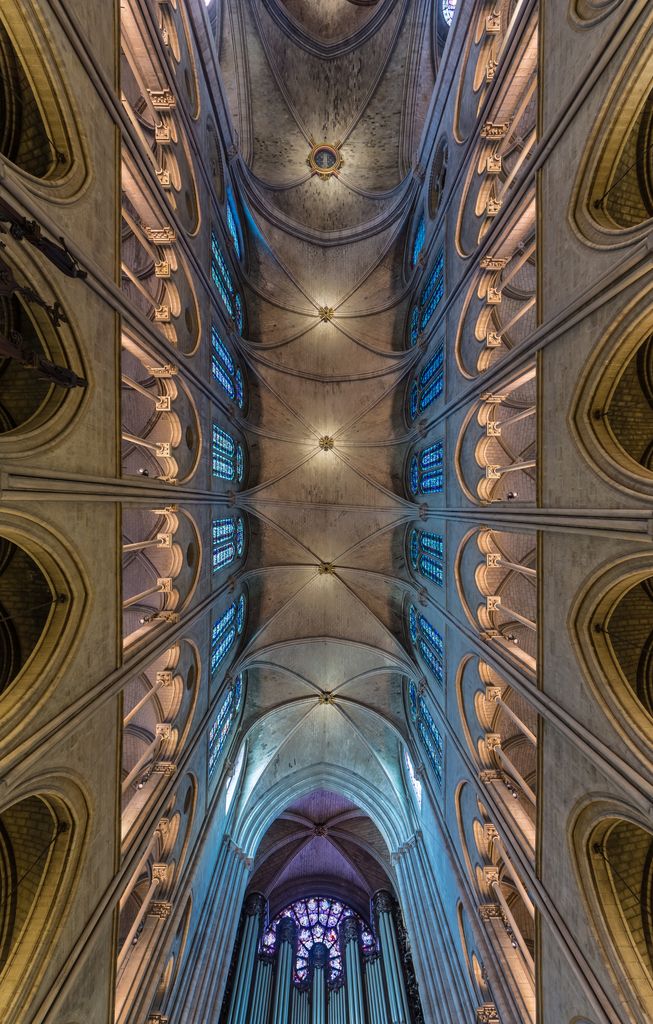

Nave vaults at Notre-Dame de Paris, photographed by Uoaei1 in October 2015; the source notes that slightly offset pillars leave the bays somewhat skewed. Uoaei1, Vaults in the nave of Notre-Dame de Paris; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

Counting visible panels without locating supports is unreliable. Paint bands, surface joints or later ribs can subdivide a field visually. A photograph may also crop the intermediate springing that makes a six-part arrangement intelligible. The safer statement is descriptive: identify the lines you can trace, then explain which plan category fits and what evidence remains unseen. ^{[2] [22]}

Tiercerons, liernes, stars and nets

As rib patterns became more elaborate, builders added members beyond the main diagonals and transverse divisions. Tiercerons extend the fan of ribs rising from a support. Liernes connect other ribs higher in the vault. Together with ridge ribs, these members can produce stars, lozenges, networks and repeated panels. ^{[6] [23] [25]}

The categories are useful, but they are not a universal evolutionary scale. A lierne pattern may articulate geometry, enrich a sacred interior, coordinate bosses, respond to an earlier bay or display a workshop's skill. Complexity does not mean that every added rib is a separate primary load path, nor does it make one regional tradition more advanced than another. ^{[20] [24] [35]}

Official descriptions show how varied the combinations can be. Wells Cathedral includes tierceron stars and lierne patterns across different phases; other English cathedral records describe quadripartite, sexpartite, ridge, tierceron and lierne arrangements within the same complex. ^{[23] [24] [25]} Gloucester's celebrated later vaulting overlays and transforms an older architectural setting rather than erasing its chronology. ^[35]

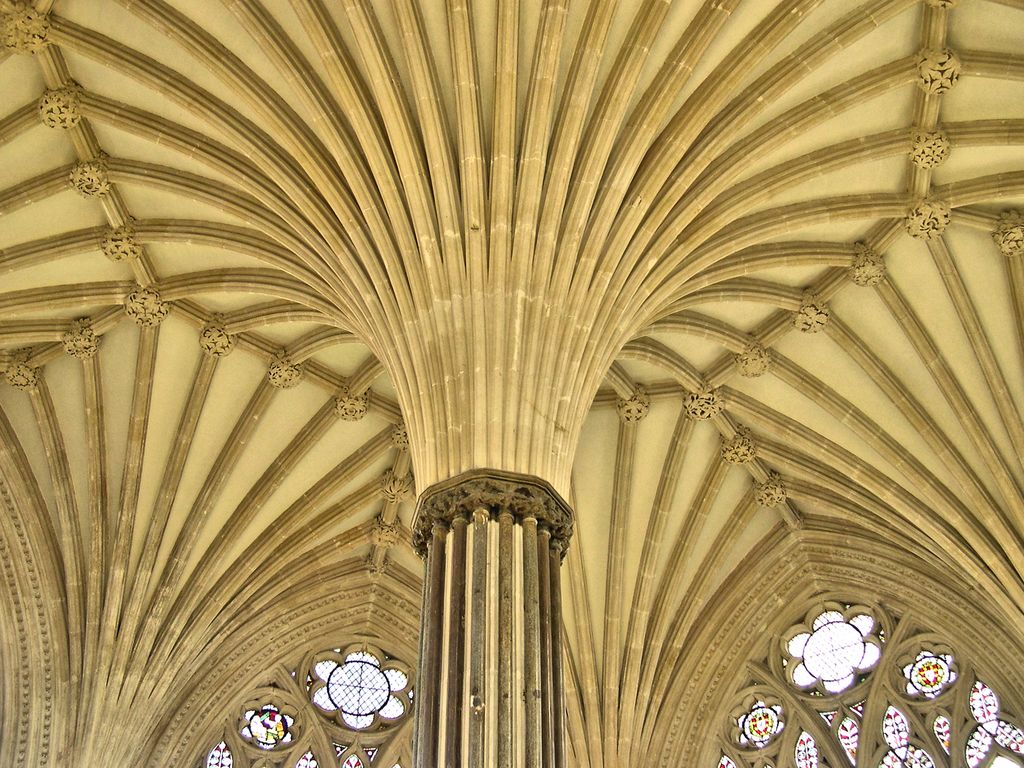

Ribs radiating from the central pier of Wells Cathedral's Chapter House vault, photographed by Philip Pankhurst in September 2006. Philip Pankhurst, The Chapter House vault, Wells Cathedral; CC BY-SA 2.0. JPEG prepared; no crop or retouch.

Names such as `stellar` and `net vault` should therefore be accompanied by a plan description. State which ribs spring from supports, which connect other members and which continue as ridges. When a regional scholarly tradition uses a term differently, attribute it instead of forcing the ceiling into a single global taxonomy. ^{[1] [6]}

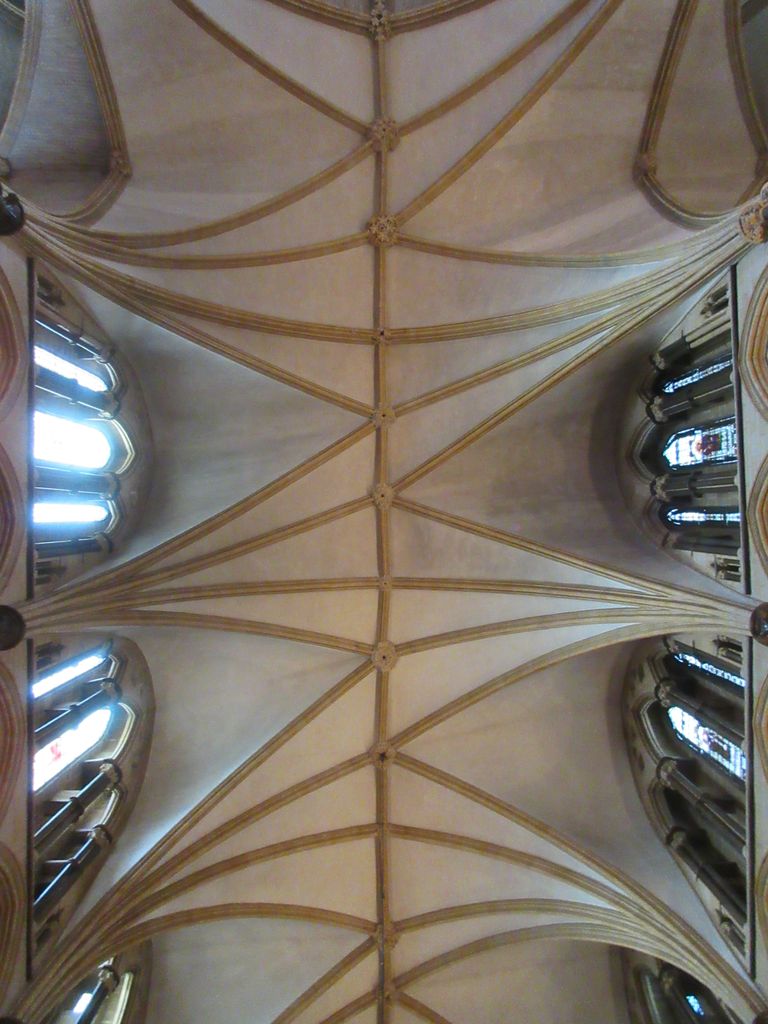

The irregular rib pattern known as the 'crazy vault' in St Hugh's Choir at Lincoln Cathedral, photographed in September 2018. Cc364, Crazy vault, St Hugh’s Choir, Lincoln Cathedral; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

How a ribbed vault was set out and built

Masonry vaulting required geometry, templates, temporary works, material preparation and coordinated labour. Carpenters provided centring or other supports; masons dressed and assembled rib stones; workers lifted materials and placed mortar; webbing was coursed between or with the ribs; and painters or sculptors might complete surfaces and bosses. Surviving records name only part of that workforce. ^{[8] [9]}

At the springing, several rib profiles could be bonded into the tas-de-charge before separating higher in the vault. Curved centring helped establish form while the masonry was incomplete. Ribs might be erected in advance of portions of webbing, giving geometric edges against which cells could be constructed, but actual sequences varied. Web courses could run approximately parallel to one boundary, change direction within a cell or adapt to irregular geometry. ^[19]

The Metropolitan Museum's reconstruction of a fifteenth-century drawing for a Viennese chapel demonstrates a documented procedure for translating geometry between plan and elevation. ^[9] Its larger exhibition places such sheets alongside templates and assembly drawings, evidence that workshop knowledge could be communicated graphically as well as orally. ^[8] It would still be misleading to project one late-medieval drawing backward onto every Romanesque or Gothic building.

Temporary and permanent roles must also be separated. A rib may have been essential for setting out and supporting construction during erection. After webbing, fill and adjoining masonry were complete, the parts could interact differently. Construction archaeology, close fabric inspection and structural analysis are needed to move from a plausible sequence to a claim about a particular vault. ^{[14] [19] [20]}

Ribbed vault and groin vault compared

A groin vault is formed where curved vault surfaces intersect and create groins. A ribbed vault makes one or more of those intersections, boundaries or subdivisions explicit with built or applied members. The visible distinction can be clear when projecting stone ribs frame contrasting web masonry, yet it can blur where ribs are flush, plastered, painted, reconstructed or imitative. ^{[3] [10] [16]}

The comparison is best kept to evidence:

• Visible lines: an unribbed groin may present the intersection of continuous surfaces; a ribbed vault displays distinct members, though finish can conceal or imitate them.
• Setting out: ribs can supply geometric edges during construction; an unribbed vault requires its own centring and coursing solution.
• Masonry action: neither label alone determines the actual force path. Shell geometry, joints, thickness, fill, cracking and supports remain decisive.
• Historical use: both forms appear across changing periods. Ribbed vaulting became especially prominent in Romanesque and Gothic European architecture, not exclusively within one style.
• Identification risk: the underside is insufficient when applied mouldings, later plaster or repair obscures bonding. ^{[2] [14] [20]}

Roman ribs were not medieval Gothic ribs

Roman concrete vaults sometimes incorporated stone or brick arches described as ribs. Lynne Lancaster notes that these members were commonly flush with the intrados and could disappear beneath decoration. Scholars have disagreed about whether they continued to channel loads independently after the concrete hardened or became part of the larger mass. ^{[16] [17]}

That evidence broadens the history of ribbing but does not create a single unchanged technology. Roman concrete, embedded brickwork and relieving arches differ materially and visually from the projecting ashlar ribs and masonry webs familiar in many medieval churches. `Rib` names a relation within construction; it does not prove identical form, purpose or historical transmission. ^[16]

This distinction also corrects the claim that medieval builders suddenly invented every aspect of ribbed construction. Earlier arcuated traditions supplied materials, techniques and problems that later workshops encountered differently. Continuity, reuse, rediscovery, adaptation and independent problem-solving must be demonstrated in the specific record rather than assumed from similar lines. ^{[15] [16]}

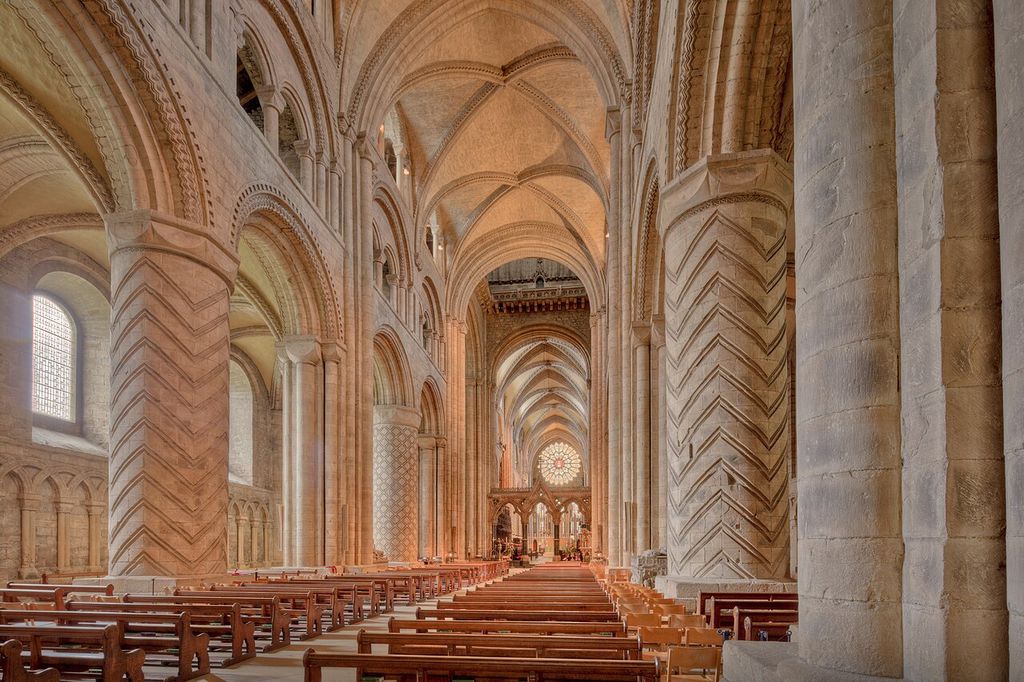

Ribbed vaults within Gothic architecture

From the twelfth century, ribbed vaulting became one of the most recognisable parts of Gothic architecture. Its significance came through coordination: pointed arches, vault ribs, compound supports, wall articulation, buttressing and window systems shaped one another. ^{[5] [6] [7]} Removing that context turns a spatial system into a decorative checklist.

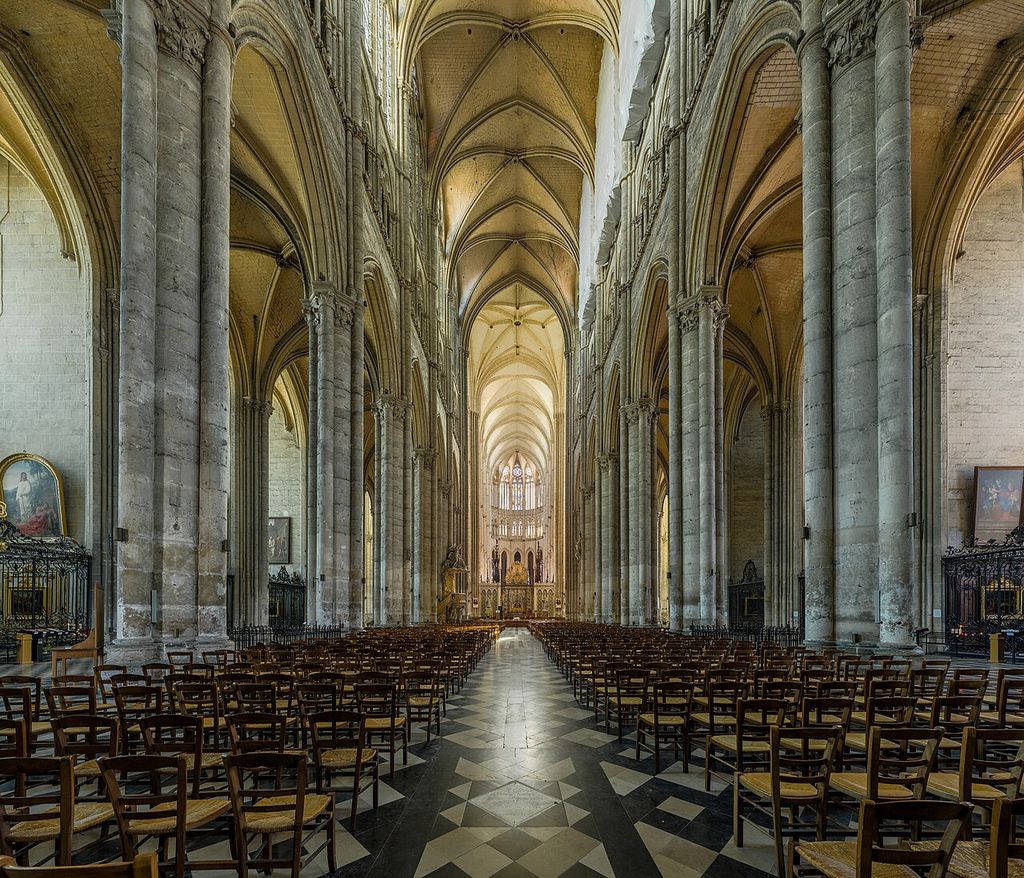

At Saint-Denis, adjoining chapels and aisles used four- and five-part rib vaults within Abbot Suger's rebuilding and its royal, liturgical and visual programme. ^[32] At Amiens, the vault belongs to a tall elevation whose piers, flying buttresses and glazed walls work as an interconnected whole. ^{[29] [31]} Chartres likewise combines structure, sculpture, glass, worship and later conservation in a monument whose value cannot be assigned to ribs alone. ^[30]

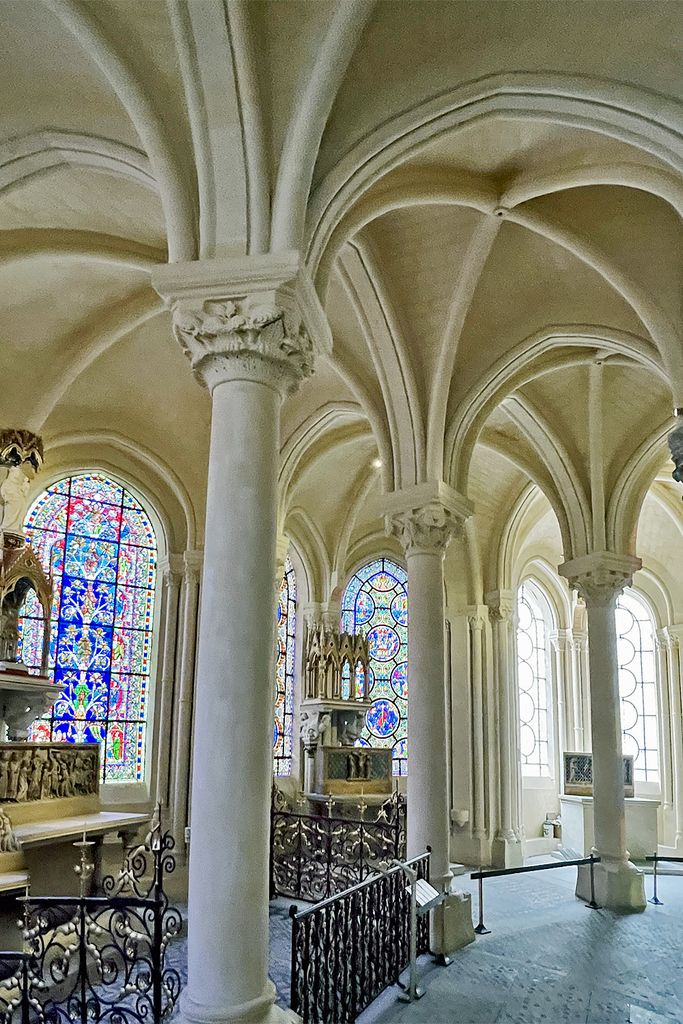

Branching ribs and pointed bays in the ambulatory chapels at the Basilica of Saint-Denis, photographed in April 2024 with stained glass, altars, railings and visitor barriers retained. Mariordo, Saint-Denis: ambulatory and radiating chapels; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

Regional and chronological differences are substantial. English work multiplied tiercerons, liernes and bosses in ways that changed ceiling rhythm and surface emphasis, while the fan vaulting of Henry VII's Chapel belongs to a related but distinct late-Gothic system treated separately from rib-vault anatomy here. ^{[34] [35] [36]} Burgos records exchange and successive additions within Spanish Gothic architecture. ^[39] Cologne preserves a medieval project whose eventual nineteenth-century completion requires the design and the later campaign to be distinguished. ^[38] Canterbury's long sacred history includes rebuilding and continued institutional use. ^[40]

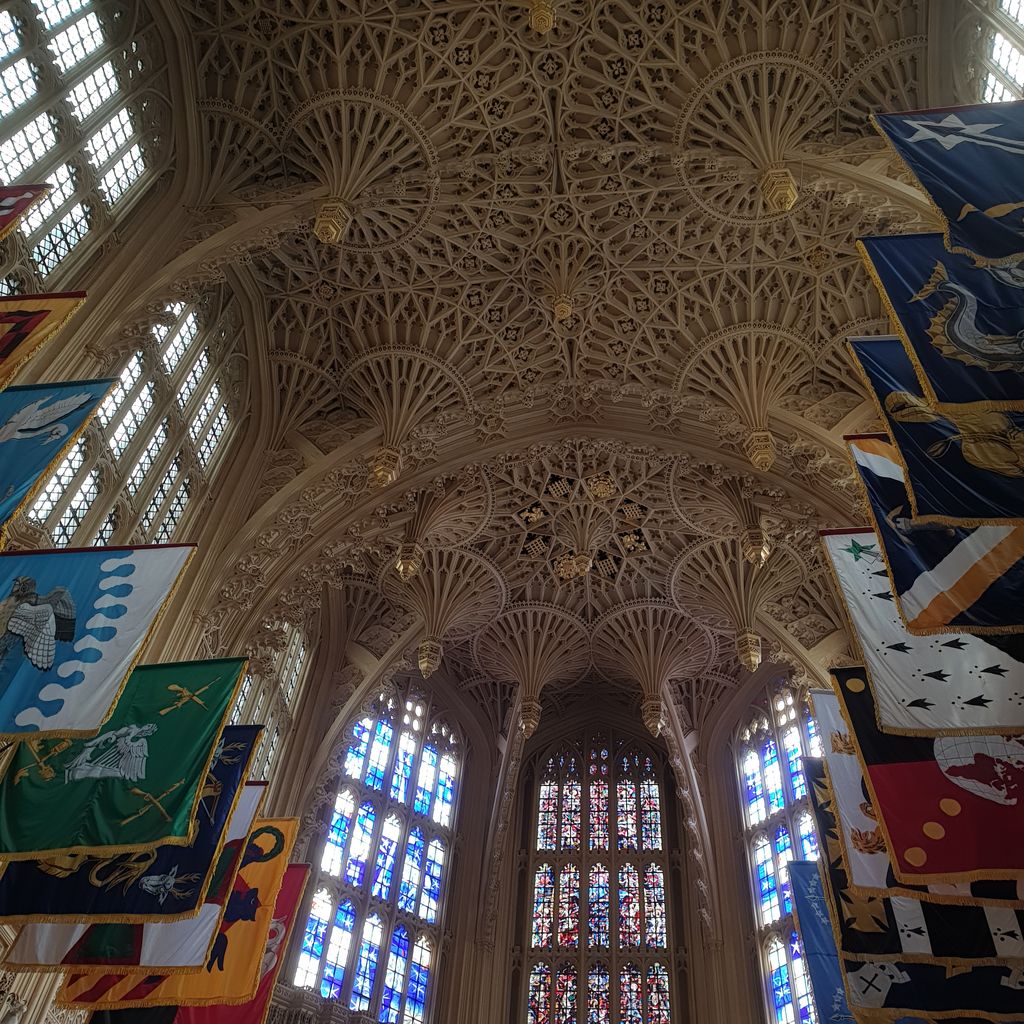

Fan and pendant vaulting in Henry VII's Chapel at Westminster Abbey, photographed in May 2021 with stained glass and ceremonial banners along the sides. JRennocks, Ceiling of Henry VII Chapel, Westminster Abbey; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

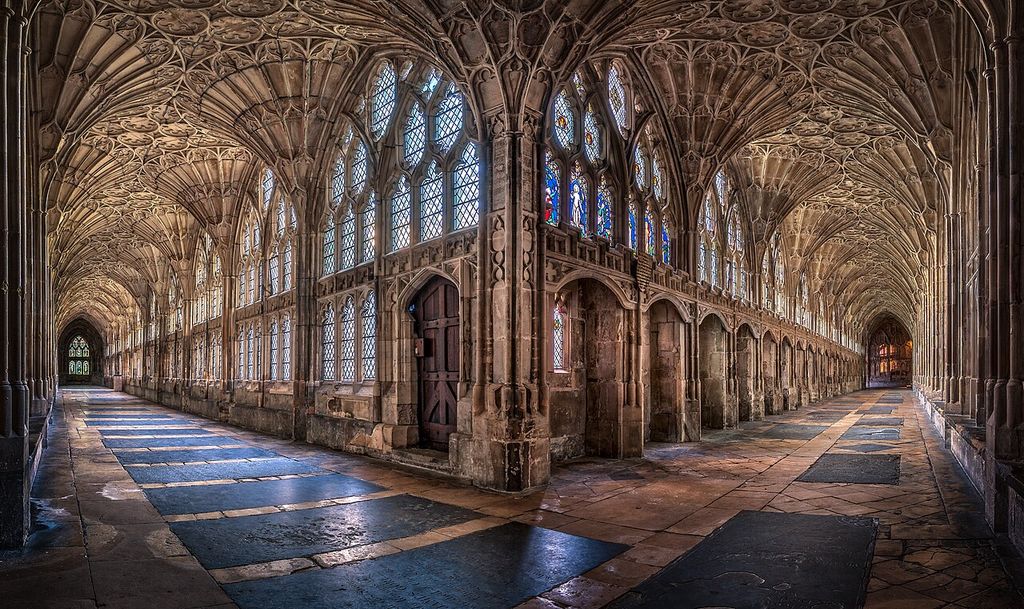

Fan-vaulted cloister walks at Gloucester Cathedral, photographed in January 2018 from their junction. Christopher JT Cherrington, The Cloisters at Gloucester Cathedral; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

These examples should not be ranked by complexity. A four-part bay can express a clear structural and spatial order; a dense net can foreground pattern, craft and patronage. Both must be read through materials, supports, date and building purpose. ^{[23] [25]}

Bosses, colour and sacred meaning

A boss often covers or marks the meeting of ribs, but it can do more than tidy a junction. Carved foliage, heraldry, human or sacred figures and painted colour can create a sequence across a chapel, choir or crossing. Meaning depends on where the boss is located, who commissioned it, which phase it belongs to and how the space was used. ^{[4] [25]}

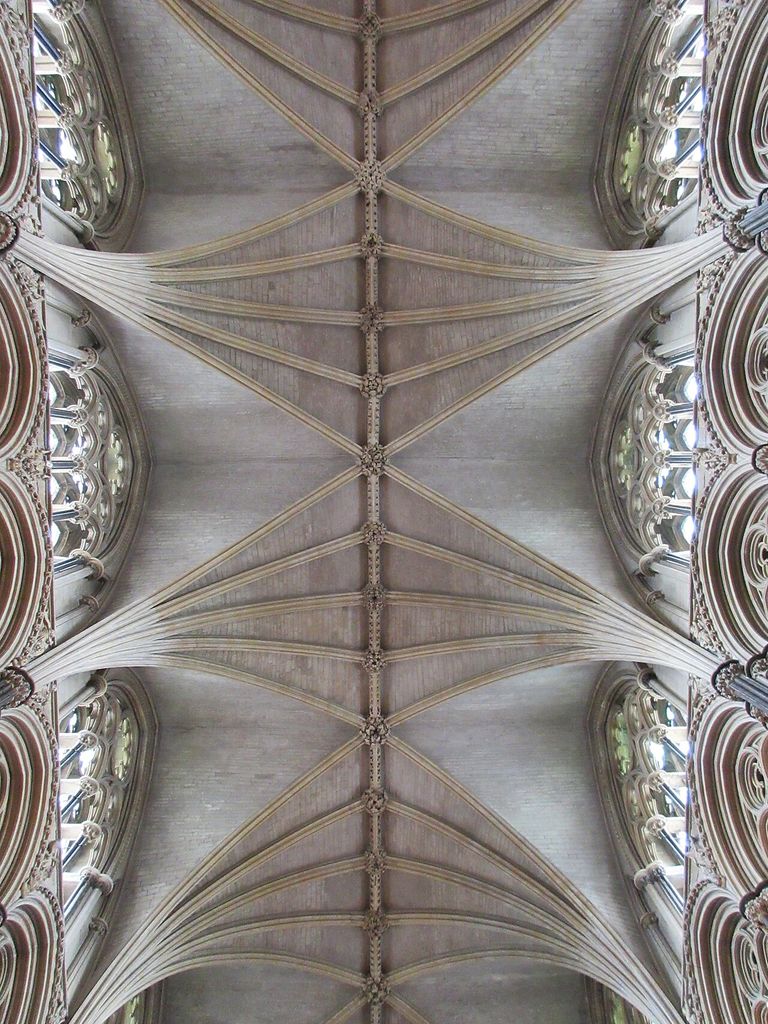

Ribs and carved bosses across the Angel Choir vault at Lincoln Cathedral, photographed in September 2018. Cc364, Vault of the Angel Choir, Lincoln Cathedral; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

Such imagery should not be described as generic `decoration`. A devotional figure belongs to a particular religious programme and community; heraldry may record patronage or institutional authority; later repainting can transform what viewers perceive. Damage, iconoclasm, replacement and restoration may interrupt the original sequence. ^{[4] [11]}

The present page's diagram deliberately excludes sacred figures, heraldry and copied boss designs. A neutral circle can identify a junction, but it cannot stand in for the iconography of an actual church. Whole-building and collection histories remain the proper owners of those meanings.

Materials that can produce similar patterns

Stone ribs with stone webs are only one possibility. Medieval vaults may combine carefully cut rib voussoirs with rubble, brick or lighter web material. Brick ribs can be integral to brick vaults. Plaster can cover mixed masonry or form an applied imitation. Timber and later metal or concrete construction can reproduce ribbed outlines through entirely different structural systems. ^{[17] [19] [33]}

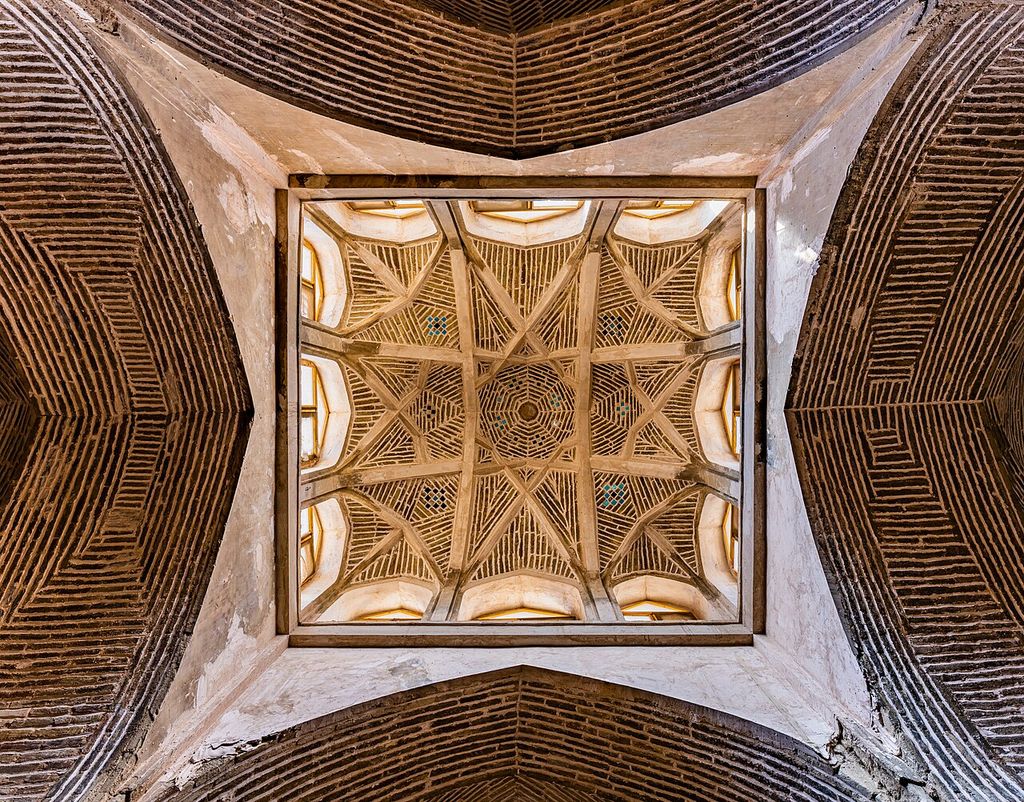

Intersecting ribs and patterned brick infill in the Jameh Mosque of Isfahan, photographed by Amir Pashaei in 2019; the Commons source identifies the image as HDR. Amir Pashaei, Ribbed vault of Jameh Mosque of Isfahan; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

Material identification begins with more than colour. Record unit size, bedding and joint direction, mortar, tooling, surface finish, ring depth where visible and bond between rib and web. Compare breaks in profile, changes in weathering and archived repair records. A clean-looking member may be new stone; an uneven one may retain valued early fabric. ^{[2] [44] [51] [52]}

Modern Gothic Revival work is historically real but not medieval. Washington National Cathedral, for example, provides a living record of twentieth-century Gothic design and craft. ^[33] Its ribbed forms should be dated and interpreted within that campaign, not used as transparent evidence for how a twelfth-century vault was built.

Reading alteration and unfinished evidence

Vaults change. A springer may survive where a planned rib was never completed or where a later ceiling replaced an earlier one. A boss can be recut, reset or replaced. Webs can be patched after fire, impact, roof failure or water ingress. Services and lighting can conceal or perforate surfaces. Paint may unify materials that belong to several periods. ^{[2] [26] [45]}

Useful clues include interrupted mouldings; joints that stop at a patch; stone or brick of a different size; mortar that crosses an earlier line; bosses that do not fit neighbouring profiles; redundant corbels; blocked openings; and discrepancies between the ceiling and dated drawings. None is conclusive alone. A phase interpretation should separate observation from inference and label uncertainty. ^{[2] [24]}

Official listing records can help identify named patterns and known interventions, but they are selective descriptions rather than complete archaeological reports. ^{[23] [24] [25] [26] [27] [28]} Measured surveys, scaffold inspections, conservation files and close photographs may revise what can be seen from the floor.

Cracks, water and structural uncertainty

Cracks are evidence to map, not diagnoses to name from a distance. Record whether a crack follows mortar, crosses stones, runs beside a rib, opens near a boss or continues into a wall or support. Note width, displacement, staining and whether dated records show change. Movement at one support can reorganise force paths across the bay and into adjacent construction. ^{[20] [21]}

Water may enter through roofs, gutters, parapets, flashings or porous masonry above the visible vault. Staining, salt deposits, biological growth and falling surface material may therefore point to a maintenance path far from the mark itself. ^{[42] [44] [51] [52]} Corroding embedded iron can also force surrounding material apart. Hard replacement mortar may concentrate moisture or stress in softer historic units. ^{[42] [43]}

Treatment follows investigation. Repointing is not a cosmetic way to close every crack, and cleaning can remove fragile finish or construction evidence. ^{[43] [44]} Conservation standards favour understanding significance, retaining sound material and making proportionate, compatible repairs. ^{[46] [50]} When movement or falling material is suspected, access should be controlled and qualified conservation and structural professionals engaged.

Access, inspection and continued use

High vaults create access problems for maintenance and study. Scaffolds, mobile platforms, roof voids, walkways, drones, photogrammetry and laser scanning can provide different kinds of evidence, each with safety, permission and accuracy limits. A point cloud records a visible surface very well; it does not reveal every void, bond or hidden layer. ^[19]

Visitor access matters too. Historic churches and civic interiors may need better routes, lighting, interpretation, seating, lifts or hearing support. These interventions can touch significant floors, walls and thresholds and must be planned with the building's values and living use in view. ^{[47] [48] [49] [50]} Inclusive access is not outside architectural history; it is part of how the place continues to serve people.
