Cloister Architecture

How to recognise a cloister in plan and section

Begin with the open centre rather than with a decorative arch. Trace the sheltered strip that borders it and identify the line facing the court. Then trace the outer wall of the walk and the doors or passages through it. If those connections lead into a church, chapter house, dormitory range, refectory, kitchen, cellar, warming room, guest area or another communal building, the larger claustral relationship becomes legible. ^{[2] [3] [12]}

Do not supply the room order from memory. A common medieval diagram places a church on one side, a chapter house and dormitory access on another, and a refectory on a third. Real complexes answer to slope, drainage, earlier fabric, institutional rule and repeated rebuilding. At Coventry Priory, for example, the cloister lay north of the church on a stepped site, directly challenging the assumption that it must sit to the south. ^{[13] [17]}

A plan also suppresses vertical evidence. It may not show whether a walk was timber-roofed, barrel-vaulted, rib-vaulted, fan-vaulted or later enclosed with glass. Upper galleries, stairs, benches, screens, floor levels and drains can disappear into a few lines. Compare the plan with a section, photographs, measured fabric and archaeological reporting before describing its construction. ^{[24] [32] [33]}

Finally, record the state of every line. A standing wall, a buried foundation, an inferred return and a modern completion do not carry equal certainty. Low ruins may securely locate a walk without preserving its roof. A geophysical trace can suggest a boundary without recovering its elevation. A museum reconstruction can look complete while combining original fragments, replacement stone and curatorial decisions. ^{[14] [19] [26]}

The Rule of Saint Benedict is not a floor plan

The Rule of Saint Benedict helps explain why bounded communal space mattered, but it should not be converted into an architectural blueprint. Chapter 66 recommends, where possible, that necessities including water, a mill, a garden and workshops remain within the monastery so monks need not roam outside. It also places a porter near the entrance. Chapter 67 regulates leaving the enclosure. ^[6]

None of these passages specifies a square garth, four arcades, a chapter house beside the church or a refectory on a particular side. The Rule describes community, authority and provision. Built cloisters gave many communities a sheltered connective centre, yet the relationship between text and architecture must be demonstrated at each site rather than assumed. ^[6]

That distinction also prevents a circular argument. A quadrangular ruin cannot be labelled Benedictine simply because Benedictine houses often had cloisters; nor can a document mentioning enclosure prove that a particular court had covered walks. Institutional identity, spatial form and surviving fabric are separate kinds of evidence.

Saint Gall: an influential design, not an as-built survey

The early ninth-century Plan of Saint Gall is the oldest surviving medieval visualisation of a large building complex in UCLA's account. Its roughly forty ground plans include a church, monks' cloister, abbot's residence, school, infirmary and extensive service facilities. UNESCO describes the manuscript as a concept of Benedictine monastic organisation. ^{[4] [5]}

The drawing is exceptionally valuable because it coordinates worship, residence, care, hospitality, production and cultivation on parchment. The monks' court and adjoining ranges belong to a much larger planned system. It demonstrates that designers could think through adjacency and institutional separation at a compound scale. ^{[4] [5]}

Yet the document is not a measured survey of buildings erected at Saint Gall. Its survival at the abbey and its address to a Saint Gall context do not turn every drawn wall into constructed fabric. Later monasteries also should not be called copies merely because church, court and ranges occupy comparable positions. The manuscript supplies evidence of design thought; excavated or standing sites supply evidence of construction. ^{[4] [5]}

The communal cloister as a connective centre

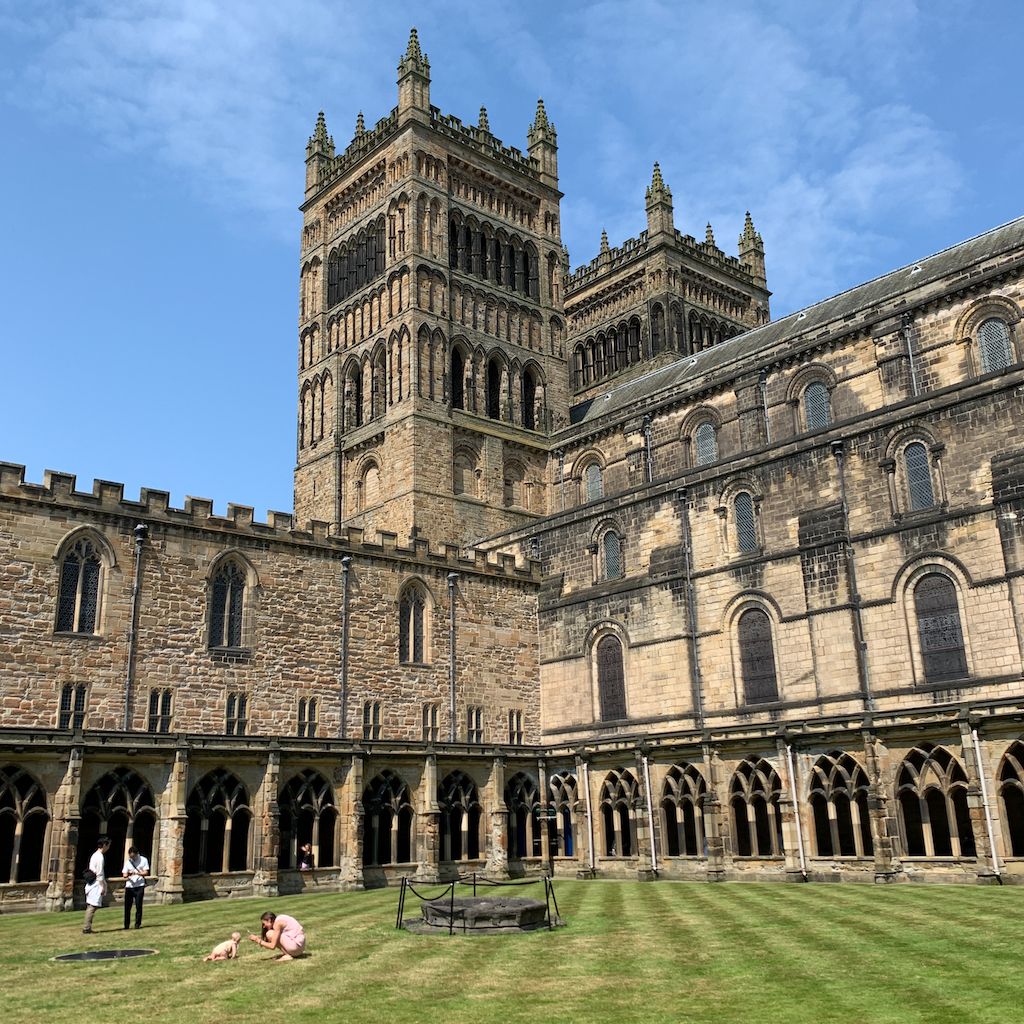

At Durham, university studies place communal monastic buildings around a cloister south of the cathedral. Doors connected the cathedral with the walks, and the surrounding ranges served the community. Much Romanesque claustral fabric has not survived intact, however, and later reconstruction contributes to the present ensemble. The plan relation is historical; the visible whole is multi-period. ^{[7] [8]}

Westminster Abbey gives more specific evidence for rooms and practices. Its thirteenth-century chapter house opens from the East Cloister and was used for meetings, reading and institutional business. The cloisters also served as a medieval thoroughfare and setting for exercise, reflection and ceremonial activity. These documented uses belong to Westminster; they do not define what happened in every walk of every monastery. ^{[9] [10]}

Westminster's Little Cloister, associated with the infirmary area, adds another correction. A complex can contain more than one cloister, and a subsidiary court may serve a smaller community or specialised function. Meaux Abbey likewise had an infirmary arrangement apart from its main Cistercian ranges. “The cloister” should not automatically mean a site's only sheltered court. ^{[11] [13]}

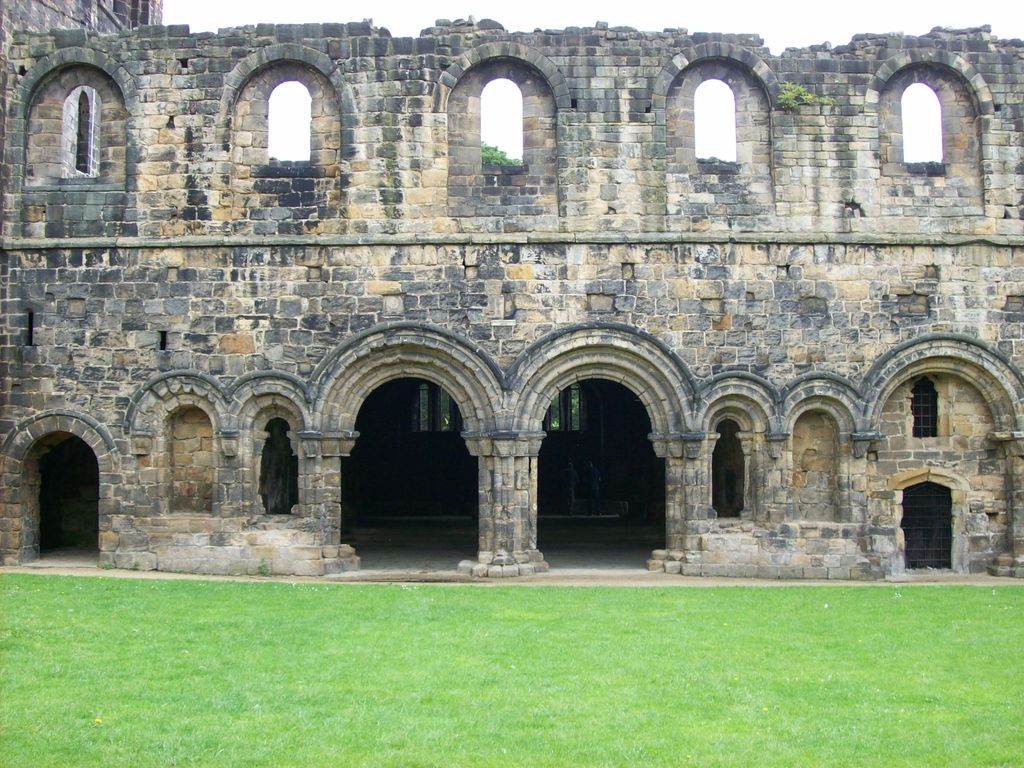

At Shap Abbey, English Heritage describes four covered walks around a garth with adjoining communal rooms. The roofs and much of the elevation are gone, so interpretation depends on surviving masonry and reconstruction. Kirkstall preserves a lavatorium, refectory relationships and passages around low remains. The ground plan can be remarkably clear even when the complete architectural experience is not. ^{[12] [16]}

Thoronet Abbey offers the idea of the cloister as a crossroads within a specific twelfth-century Cistercian complex. Its walks mediate among church and communal spaces while responding to a particular site. “Crossroads” usefully describes connection, but it should not imply unlimited access or a modern corridor carrying everyone through in the same way. ^{[21] [22]}

One walk does not have one universal use

Cloisters supported a range of activities because sheltered edges, doors, light and an open centre brought spaces together. Sources for named institutions document movement, study, washing, meetings, reading, burial, exercise and ceremonies. Those activities were distributed by local rules and building histories, not by geometry alone. ^{[3] [9] [10]}

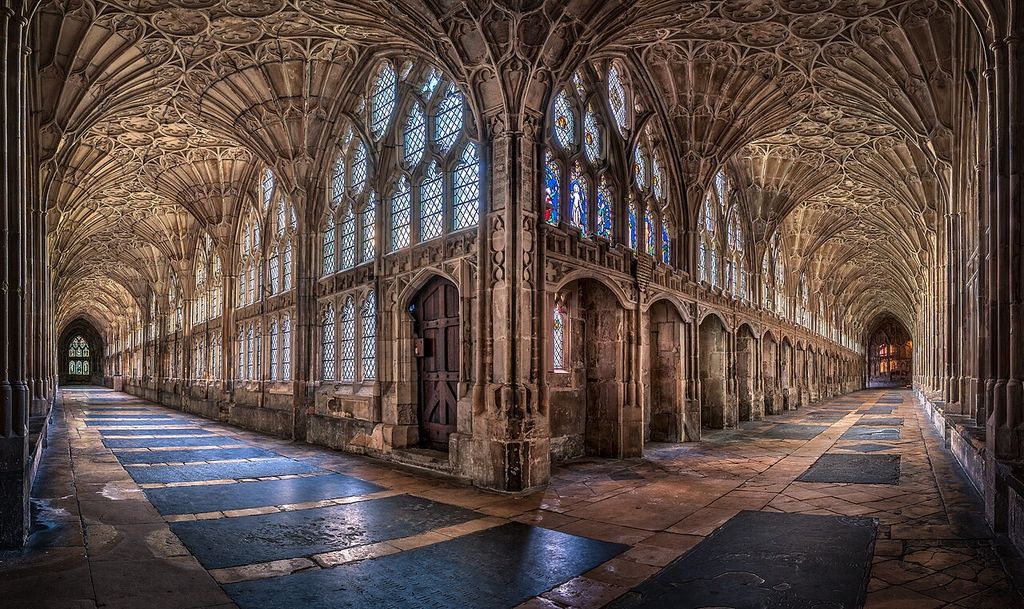

Gloucester Cathedral: adjoining cloister walks beneath fan vaults, January 2018. Christopher JT Cherrington, The Cloisters at Gloucester Cathedral; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

Gloucester Cathedral makes that specificity visible. Its present Great Cloister, completed by 1412, contains celebrated early fan vaulting. The South Walk has twenty carrels associated with monastic study, while the North Walk preserves a lavatorium. Those details are evidence for Gloucester, not a formula in which every south walk must have desks or every north walk a washing place. ^[32]

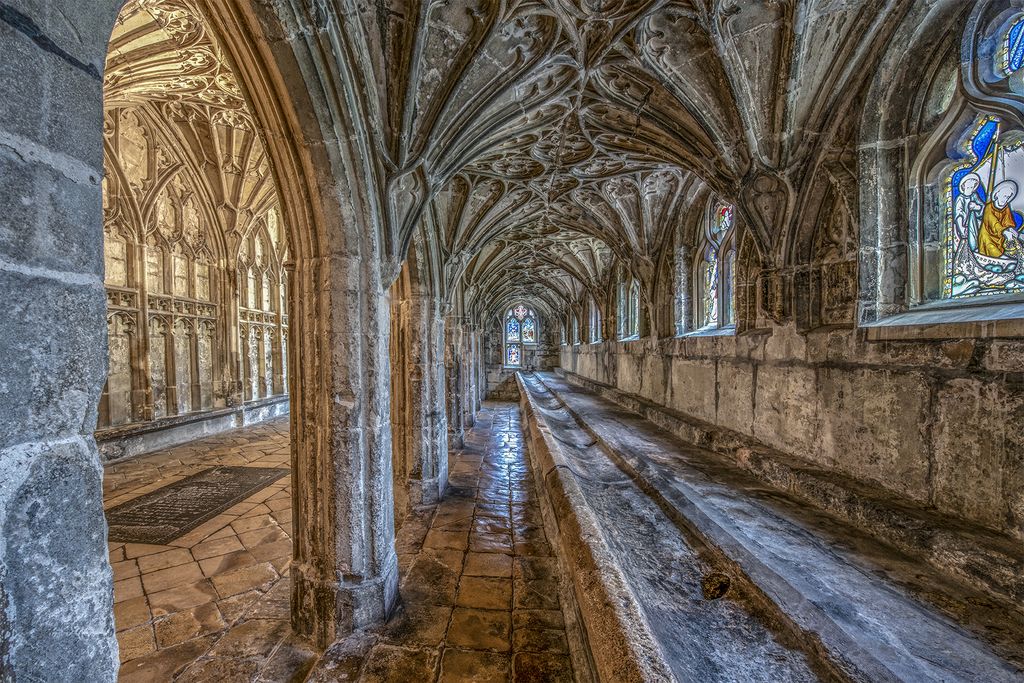

Gloucester’s cloister lavatorium, the monks’ washing place, October 2021. David James, Gloucester Cathedral: cloister lavatorium; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

Likewise, a dotted line through a plan can show that two doors are connected under cover. It cannot establish who walked there, the direction taken, the time of day or whether the movement was devotional, domestic or prohibited. Historical routes require documentary, liturgical or wear evidence for the place and period. A possible connection is not a procession.

The open centre should be read just as cautiously. A garth may admit light, air, water and a view from the walks, but those physical effects do not prove public access, a fountain, decorative flowers or silence. Planting and use can change while the court-and-walk relation survives. ^{[3] [29]}

Topography and institutional difference

Regular four-sided cloisters are common because a perimeter walk efficiently connects ranges. Regularity is not a requirement. Coventry's north-side, stepped arrangement shows how topography can reverse expectations. Earlier structures, water management and later rebuilding can skew a side, interrupt a walk or move a doorway without erasing the underlying relationship. ^{[17] [34]}

Carthusian houses provide a deeper institutional contrast. At Shene and Hinton Charterhouses, a great cloister related to individual cells and their gardens, while lesser courts served other shared needs. The large perimeter organised a life with a stronger cellular component than a cenobitic quadrangle directly bordered by common dormitory and refectory ranges. Similar words therefore conceal different social geographies. ^{[15] [20]}

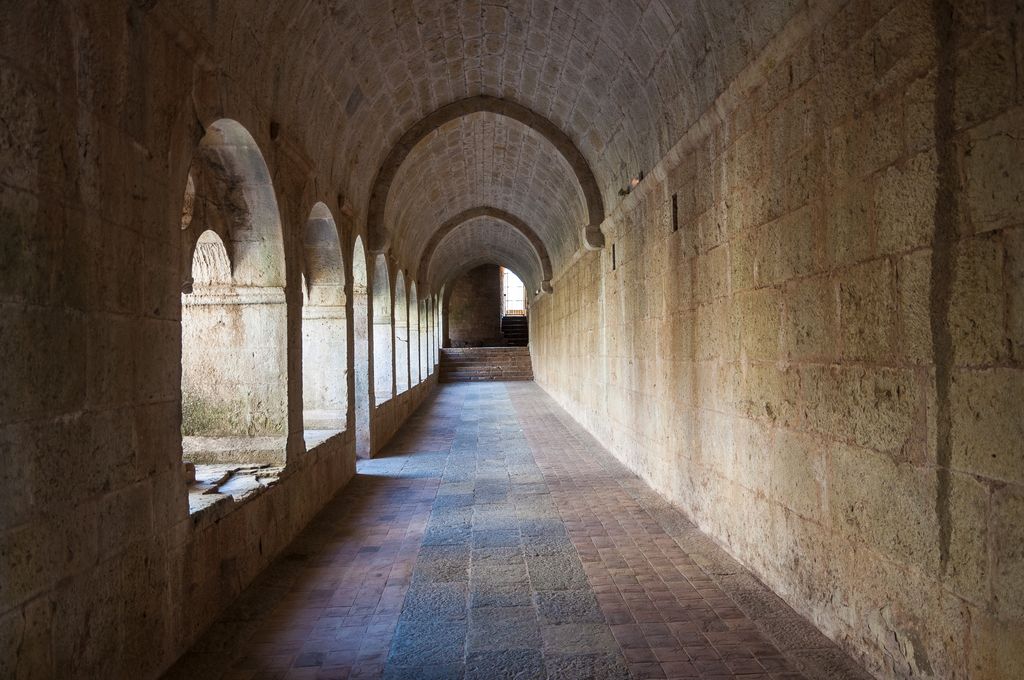

Le Thoronet Abbey: a vaulted cloister walk with steps at its far end, September 2016. André ALLIOT, Le Thoronet Abbey: cloister gallery; CC0. JPEG prepared; no crop or retouch.

The distinction is visible on plan. A door repeated around a great cloister may lead to a cell rather than a chapter house or service room. A smaller court elsewhere may concentrate communal functions. Forcing both into the same “standard monastery” key would hide the architecture's relationship to institutional practice. ^{[15] [20]}

Quarr Abbey shows that the type did not stop developing after the Middle Ages. Its early twentieth-century Benedictine buildings include a cloister and ranges in a modern architectural campaign. At Jesus College, Cambridge, elements of a former priory plan were adapted within a collegiate institution. Continuity of the spatial idea does not mean continuity of date, construction or use. ^{[18] [31]}

Ornament, structure and regional identity

The covered perimeter can be materially modest or visually elaborate. At Monreale, paired columns, carved capitals and mosaic ornament give the cloister a distinctive place within the Arab-Norman ensemble. These are building-specific features rather than requirements for a cloister. Copying its column count or patterns into a generic diagram would falsely turn a named monument into a universal type. ^[25]

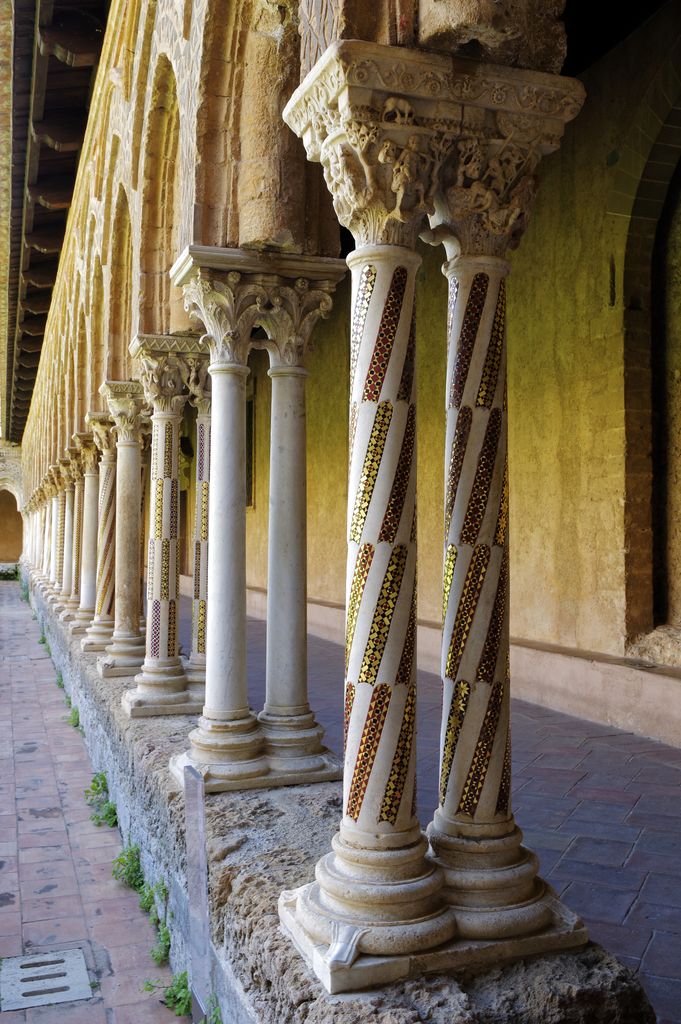

Monreale Cathedral: paired cloister columns with carved capitals and coloured inlay, April 2025. Berthold Werner, Monreale Cathedral: paired cloister columns; CC BY-SA 4.0. JPEG prepared; no crop or retouch.

Saint-Trophime at Arles similarly combines Romanesque architecture, sculpted supports and later phases. Edouard Baldus's 1851 photograph records the cloister as a carefully composed historical image made during an era of intense interest in monuments and restoration. It is evidence of one viewpoint and one nineteenth-century condition, not a transparent window onto every medieval phase. ^{[23] [24]}

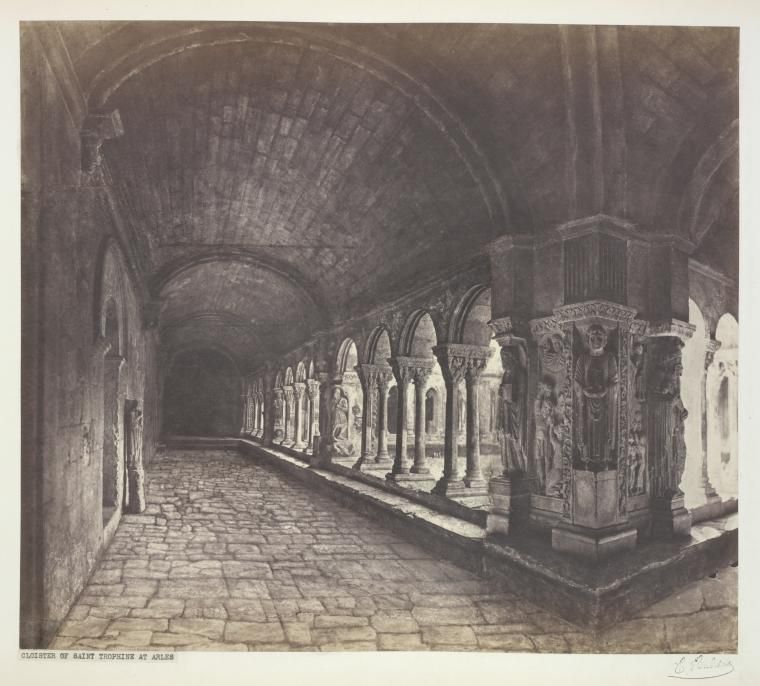

Saint-Trophime at Arles in a nineteenth-century photograph by Édouard Baldus, from the New York Public Library. Édouard Baldus / New York Public Library, Cloister of Saint Trophime at Arles; Public domain. JPEG prepared; no crop or retouch. Historical NYPL catalogue reference, image 1601887.

Gloucester's fan vaults demonstrate another structural and decorative identity. Other cloisters use rib vaults, barrel vaults or timber roofs; later glazing can close what once appeared open. Roof type should be established from section and fabric, never inferred merely because a plan shows bays. ^{[24] [30] [32]}

The Met Cloisters: medieval fragments in a modern ensemble

The Met Cloisters opened in 1938 as a purpose-built museum containing medieval architectural elements from several places. Its spaces create persuasive relationships among courts, walks, rooms and gardens, but the ensemble is neither an untouched monastery nor a copy of one historical site. ^{[26] [28]}

The Cuxa Cloister makes this layered status unusually clear. Hundreds of fragments contributed to the reconstruction, yet modern marble and masonry complete the court; only part of the displayed capitals and shafts are medieval originals. The original cloister was also larger than the museum version. What visitors experience is an informed twentieth-century architectural composition built around displaced medieval fabric. ^{[26] [27]}

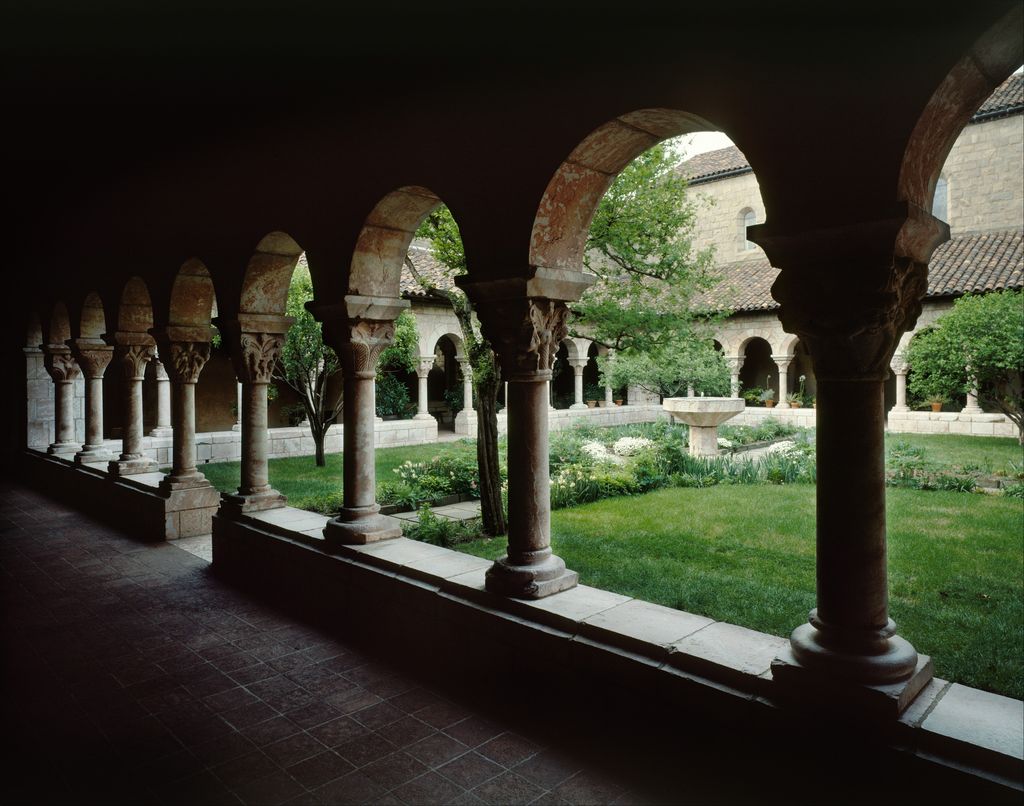

The Cuxa Cloister at The Met Cloisters, New York: medieval carved elements incorporated into a modern museum ensemble. Photograph undated. The Metropolitan Museum of Art; photographer not identified, Cuxa Cloister — The Cloisters Collection, 1925, accession 25.120.398–.954; CC0. JPEG prepared; no crop or retouch. The Metropolitan Museum of Art collection record.

The Saint-Guilhem material presents a related problem: incomplete evidence for original placement required curatorial decisions. Apparent coherence can therefore be a quality of modern display rather than proof of a recovered medieval arrangement. A component's age and its position in the present ensemble are separate claims. ^[26]

The gardens and enclosure have their own dates. The Met uses garth while explaining current reconstructed planting designs. Bronze-and-glass panels installed in the twentieth century change Cuxa's seasonal enclosure and visitor access. Neither the plants nor a winter closure can be projected backward as the original court's condition. ^{[29] [30]}

Reading the cloister diagram

Original relationship schematics, not a measured monastery and not to scale. Garth, covered walk, arcade, range, doorway, standing fabric, buried or inferred evidence and later completion remain distinct without colour alone. The dotted line shows a possible sheltered connection, not a documented procession, timetable or structural force.

The diagram on this page is invented rather than copied from Saint Gall, Durham, Gloucester, Monreale or any other monument. Its principal plan places four covered walks around an open garth and connects them to abstract church, chapter-room, refectory and service/dormitory ranges. Those names demonstrate adjacency; their positions are not a mandatory compass order.

The dotted route shows one possible sheltered connection through several doors. It is not a documented procession, monastic timetable, accessibility route or structural load path. The court, walk, inner arcade and outer range wall remain separately labelled so that one word does not swallow the entire ensemble.

Four smaller variants test the definition. A regular communal quadrangle has four complete walks. An irregular plan shifts one range and passage in response to an unspecified site constraint. An incomplete survival diagram separates standing, buried or inferred, and later-completed boundaries. A paired great-and-subsidiary example distinguishes a cell-related perimeter from a smaller communal court. None reproduces a historical plan.

The plan-and-section pair separates horizontal relationship from vertical construction. The section names the garth, arcade, covered walk, roof or vault zone, outer wall and upper range without calculating loads. In the two time states, an earlier opening and boundary are altered by blocking, replacement and a changed route. Patterns and line styles repeat the categories so they remain legible without colour.

Cloister: Five Evidence Tests

Read the court, covered perimeter and adjoining ranges as related evidence without assuming a universal room order or use.

A reliable identification sequence

1. Establish the date, purpose and evidential status of the plan, survey, photograph or visitor map.
2. Check whether the source uses cloister for the complete ensemble or for one walk.
3. Identify the open centre and record whether its surface or use is actually known.
4. Trace the sheltered perimeter and distinguish the inner arcade or colonnade from outer range walls.
5. Follow doors and passages to rooms named by a reliable plan key or fabric account.
6. Record which sides are standing, roofless, buried, inferred, restored or newly completed.
7. Compare plan with section for covering, upper storeys, stairs, screens and floor levels.
8. Test apparent regularity and orientation against slope, drainage, earlier fabric and institutional type.
9. Distinguish main, infirmary, little, great and subsidiary cloisters only where sources support those names.
10. Attribute study, washing, burial, procession or public access to a named place and period rather than to the geometry alone.

This method allows uncertainty to remain visible. A fragmentary walk can be securely identified without pretending its elevation survives, while a complete modern court can be recognised as reconstruction rather than medieval continuity.
